4.7 Setting output parameters
4-15
Settings Required
for Basic Control

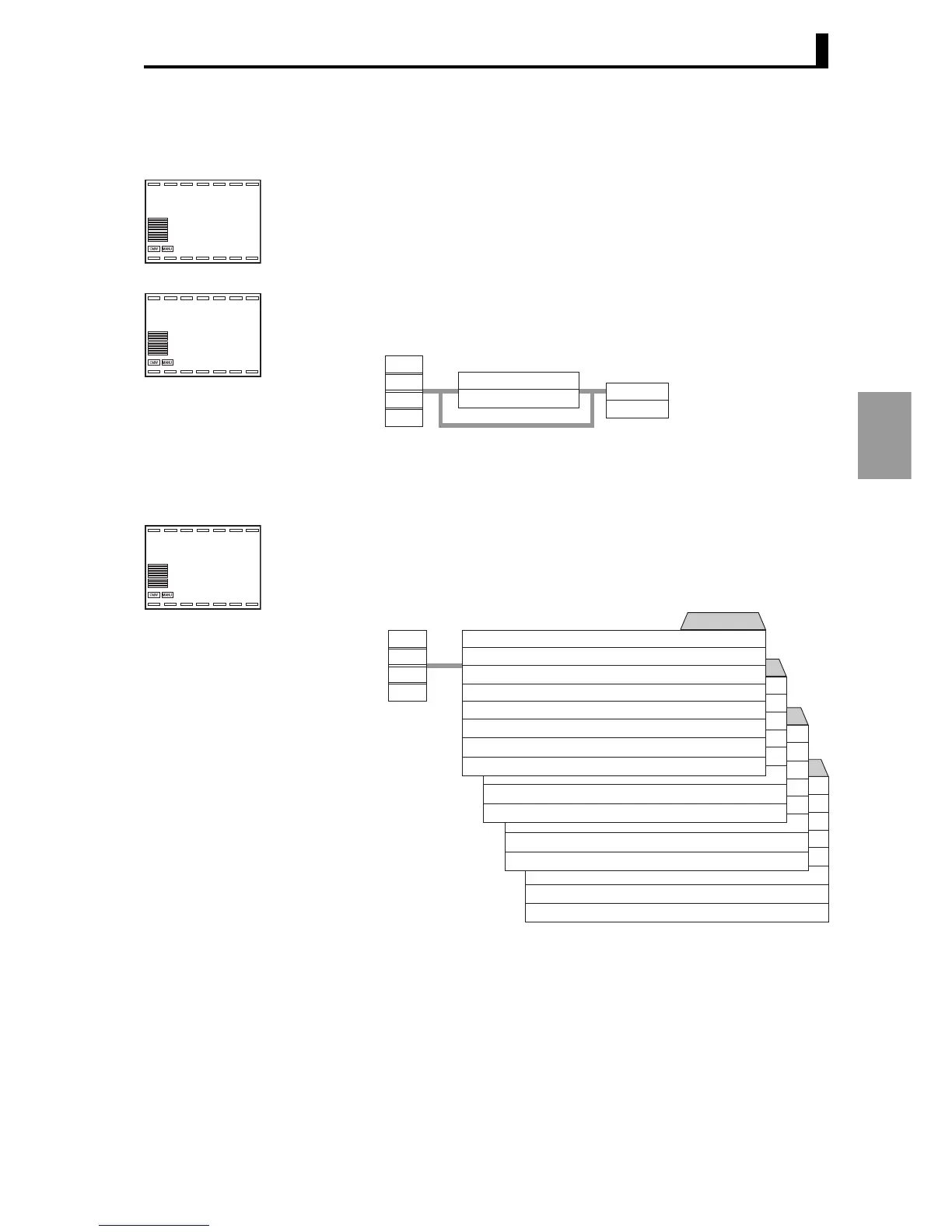

■ Output type
• Multi-output is available on the E5AR/ER, which allows selection of
pulse voltage output or linear current output. Select the output type
in "Output*: Output type".
The E5AR-Q@ @@@, output 1 of the E5ER-Q@@@, and outputs 1
and 3 of the E5AR-QQ@@ are multi-outputs.
• Linear current output can be set to 4 to 20 mA or 0 to 20 mA in
"Linear current output*: Output type".
• Pulse voltage output is 12 V DC, 40 mA.
■ Output assignment
• This is used to assign what type of data is output from each output.
• On multi-point input types, the data assignment can be set for
channels 2 and higher as appropriate for the number of channels.
• When used for control output, the assignments are made automati-
cally based on the control mode setting as shown on the following
page. There is no need to change the assignments.
• To use an output for transfer output, assign the data you wish to
transfer to an unused output.
Note that if transfer output is assigned to a pulse voltage output, the
output will turn OFF.
o1-t
0
l.1
Output Output type
co3-t
1
l.1
Linear current output Output type
OUT1
OUT2
OUT3
OUT4
Output
Pulse voltage output
Linear current output
0 to 20 mA
4 to 20 mA
Linear current output Output type
Multi-output Output type
out.1
1
l.2
Channel 1 control output (heat side)
Channel 1 control output (cool side)
Channel 1 SP
Channel 1 ramp SP
Channel 1 present value (PV)
Channel 4 MV (heat side)
Channel 4
Channel 1 control output (heat side)
Channel 1 control output (cool side)
Channel 1 SP
Channel 1 ramp SP
Channel 1 present value (PV)
Channel 3 MV (heat side)
Channel 3
Channel 1 control output (heat side)
Channel 1 control output (cool side)
Channel 1 SP
Channel 1 ramp SP
Channel 1 present value (PV)
Channel 2 MV (heat side)
Channel 2 MV (cool side)
Channel 2
OUT1
OUT2
OUT3
OUT4
Output
Control / Transfer output assignment
Channel 1 control output (heat side)
Channel 1 control output (cool side)
Channel 1 SP
Channel 1 ramp SP
Channel 1 present value (PV)
Channel 1 MV (heat side)
Channel 1 MV (cool side)
Channel 1 valve opening
Channel 1
