Section 6 Communication (CompoWay/F)
6-18
Communication
(CompoWay/F)
To specify an address, see "Appendix Setting list" (P.A-6).
Setting data of setting area 1 can be written in setting area 1. An error
will result if written in setting area 0.
To use this command, "Write via communication" must be enabled
using the "Write via communication" operation command.
To store setting data of Operation, Adjustment, Adjustment 2, Bank
setting, PID setting, or Approximation setting levels in non-volatile
memory, select "Backup" with the "Write mode" command. If not set to
"Backup", the setting data will not remain in memory when the power
is turned off. For more information on the above levels, see "4.1
Setting levels and key operation" (P.4-2).
Response codes: The above indicates a normal end. For the response
codes, see "6.6 Writing to the variable area" (P.6-10).

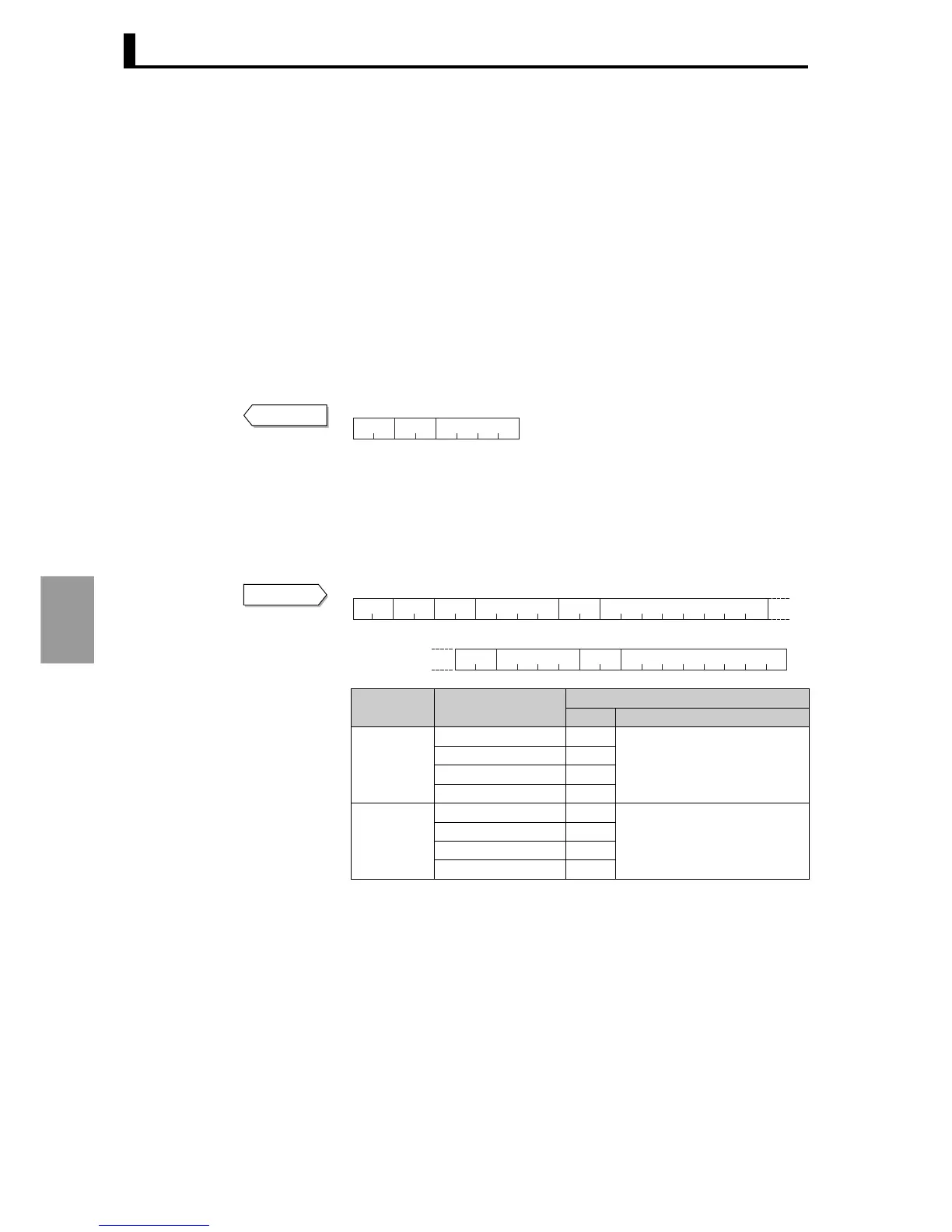

■ Setting data compound write (Communication/CompoWay/F)
Multiple setting data items can be written by sending a single
command. Up to 12 items can be written even if the addresses are not
contiguous.
To specify the variable type or address, see "Appendix Setting list"
(P.A-6).
Setting data of setting area 1 is written in setting area 1. An error will
result if written in setting area 0.
To use this command, "Write via communication" must be enabled
using the "Write via communication" operation command.
Response
"01" "02" "0000"
Response code
SRCMRC
Variable
type
Address
Setting data
Ch Explanation
"C5" to "CB"
"0000" to "007F" 1
Setting data of setting area 0
"0100" to "017F" 2
"0200" to "027F" 3
"0300" to "037F" 4
"CC" to "D3"
"0000" to "0039" 1
Setting data of setting area 1
"0100" to "0139" 2
"0200" to "0239" 3
"0300" to "0339" 4
Command
"01" "13" "00"
Bit position
AddressMRC SRC Variable type
Setting data
Data
"00"
Bit position
AddressVariable type
Setting data
Data
