Section 6 Communication (CompoWay/F)
6-20
Communication
(CompoWay/F)
■ Monitor value / setting data compound read store check (read)
This is used to check the contents that were stored using "Monitor
value / setting data compound read store".
Response codes: The above indicates a normal end. For the response
codes, see "6.5 Reading the variable area" (P.6-9).
■ Monitor value / setting data compound store read
This is used to read by a single command the multiple monitor values
or setting data items that were stored using "Monitor value / setting
data compound read store (write)".
This command can be used in both setting area 0 and setting area 1.
If an area type error or a setting data error occurs in any of the data
being read, no data will be read.
Response codes: The above indicates a normal end. For the response
codes, see "6.5 Reading the variable area" (P.6-9).

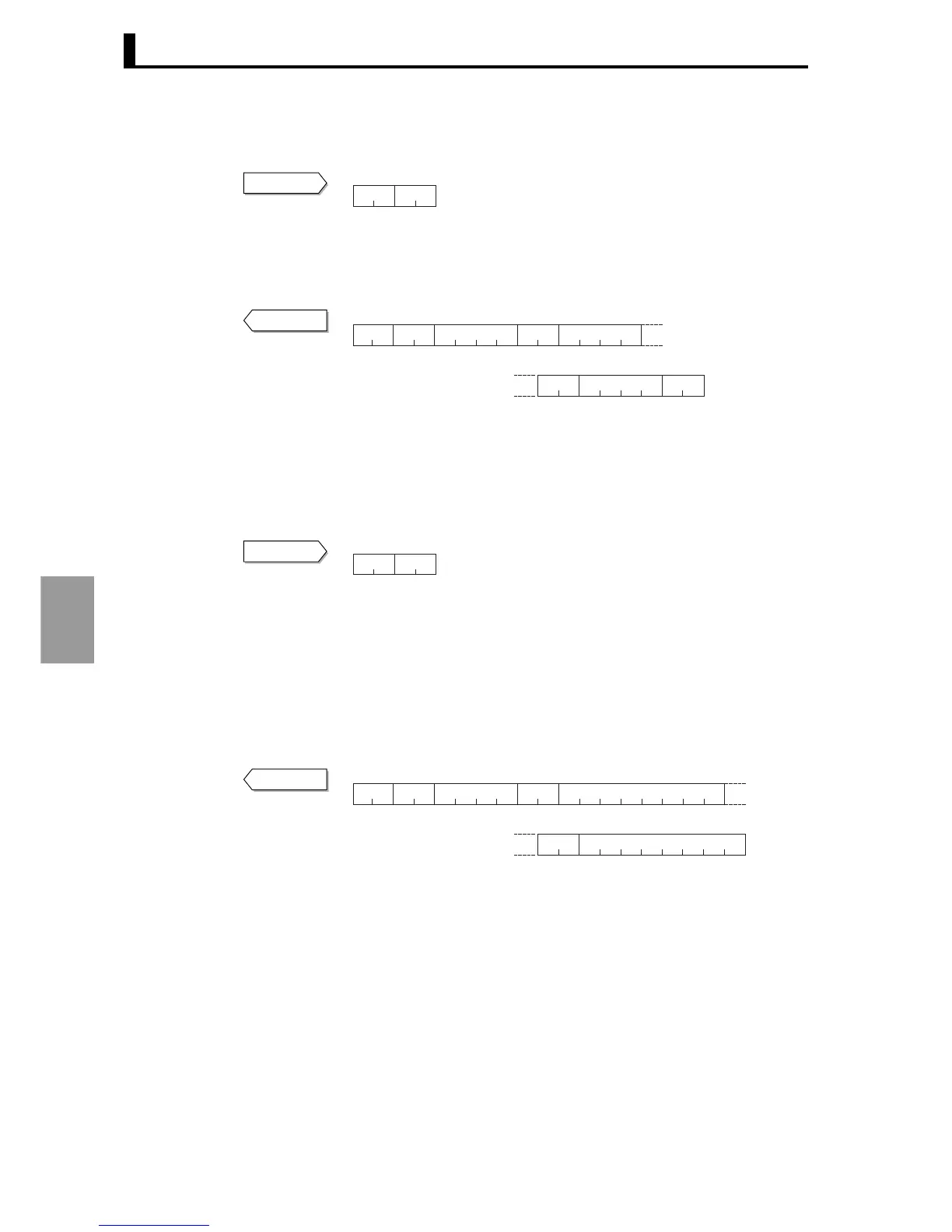

Command
"01" "12"
SRCMRC
Response
"01" "12" "0000"
Type
Response code
Read address
Read addressMRC SRC Variable type
"00"
Bit position Variable type
Type
Command
"01" "10"
SRCMRC
Response
"01" "10" "0000"
Type
Response code
Data
Data
Monitor value / Setting data
MRC SRC Variable type
Monitor value / Setting data
Variable type
Type
