Section 3 Typical Control Examples
3-14
Typical Control
Examples

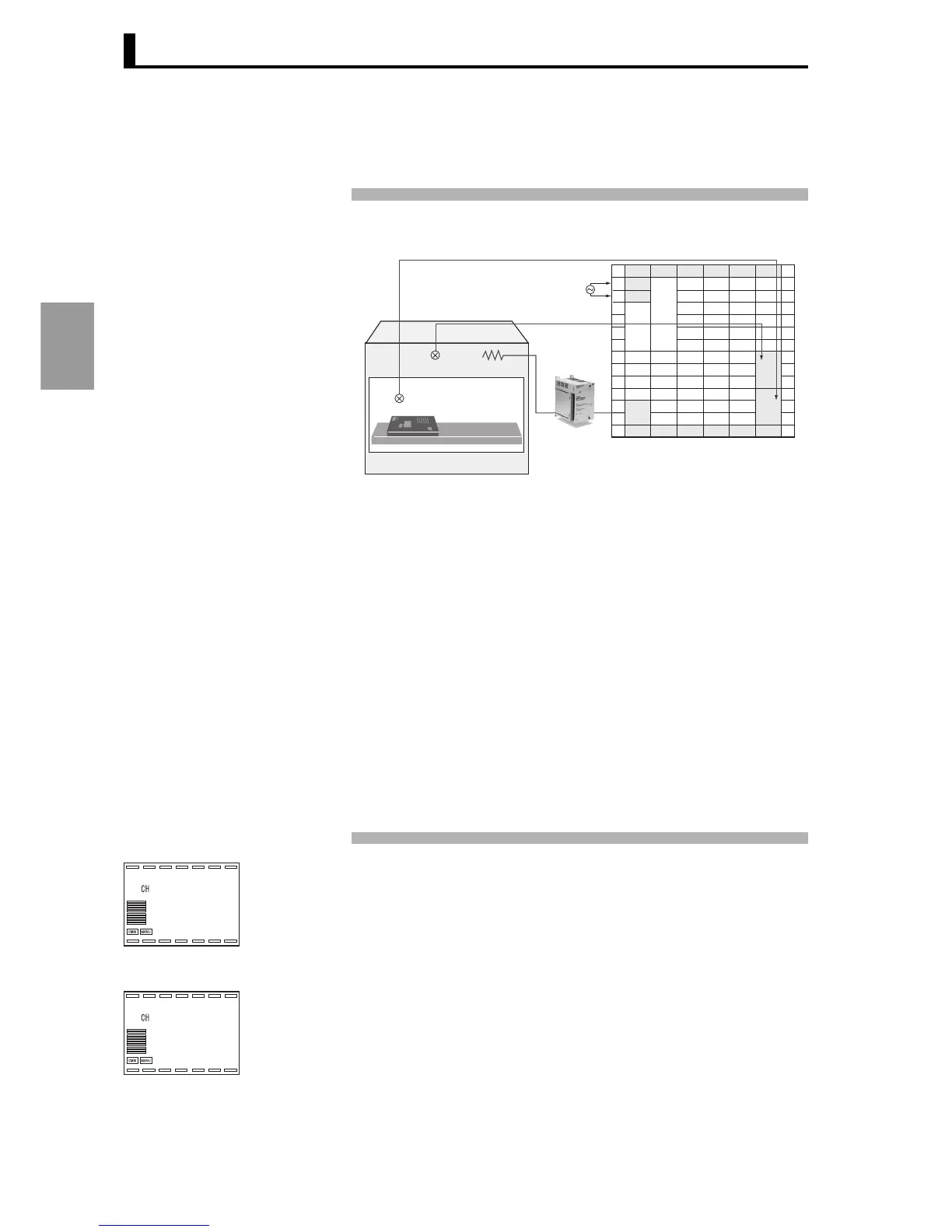

■ Wiring Thermocouple K close to the heater is connected to IN2, thermo-
couple K in the oven is connected to IN1, and a power adjuster is
connected to OUT1.
When using the E5AR-QQ43DW-FLK, wire as shown below.
■ Settings
Inputs 1 and 2 are set to thermocouple K and the control mode is set
to cascade standard control.
The related setting data and settings are as follows:
Input 1 type switch = TC.PT (initial setting)
Input 2 type switch = TC.PT (initial setting)
Input 1 input type = 2: K-200.0 to 1300.0°C (initial setting)
Input 2 input type = 2: K-200.0 to 1300.0°C (initial setting)
Output type of output 1 = 1: Linear current output
Output type of linear current output 1
= 1: 4 to 20 mA (initial setting)
Control mode = 5: Cascade standard control
SP = 180.0
The control mode and SP are set in the following, and the initial
settings are used for all other parameters.
1. Turn on the power and then hold down the L key for at least 3 seconds to
move from "RUN level" to "Input initial setting level".
2. Press the L key less than 1 second to move from "Input initial setting
level" to "Control initial setting level".""o1-t: Output 1 output type" will
appear. Press the D key to set to "1: Linear current output".
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
FGHI J K
IN2
IN1
OUT1
Sensor 2
Heater
100 - 240 V AC
Sensor 1
G3PX
Power adjuster
4 - 20 mA
ABCDE
i1-t
2
l.0
Input initial setting level
o1-t
1
l.1
Control initial setting level
Output 1
Output type
To Next Page
