4.11 Using auxiliary output
4-23
Settings Required
for Basic Control
4.11 Using auxiliary output
"Auxiliary output ∗ assignment", "Alarm type", "Alarm value", "Alarm upper limit", and "Alarm lower limit"
are explained in this section.

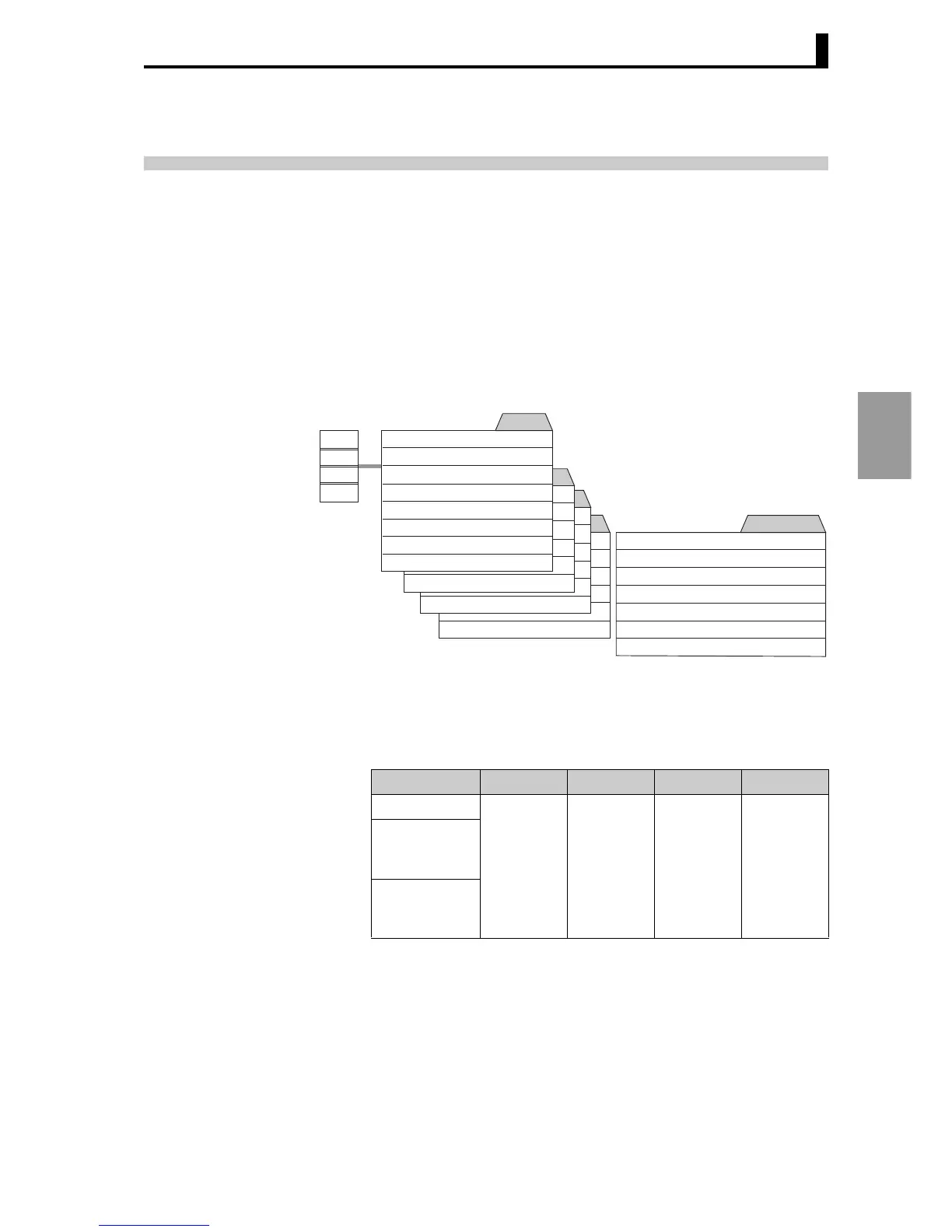

■ Auxiliary output assignment
This setting assigns the type of data that is output from each auxiliary
output.
On multi-point output types, data assignments can be set for channels
2 and higher as appropriate for the number of channels.
U-ALM output is an OR output (overall alarm) of alarms 1 to 4 of all
channels.
The initial settings are as follows:
The E5ER-@2@@ and E5ER-@T@@ auxiliary output 2-point types are not equipped with
SUB3 and SUB4.
Channel 2
Channel 3
Channel 4
All channels alarm 1 OR output
All channels alarm 2 OR output
All channels alarm 3 OR output
All channels alarm 4 OR output
All channels input error OR output
All channels RSP input error OR output
SUB1
SUB2
SUB3
SUB4
Auxiliary output
Auxiliary output assignment
Channel 1 alarm 1
Channel 1 alarm 2
Channel 1 alarm 3
Channel 1 alarm 4
Channel 1 input error
Channel 1 RSP input error
A-ALM output
Channel 1
All Channels
Type SUB1 SUB2 SUB3 SUB4
1-point input type
ch1 alarm 1 ch1 alarm 2 ch1 alarm 3 ch1 alarm 4
2-point input type
E5AR-
@@@W
E5ER-
@@@W
4-point input
typeE5AR-
@@WW
