6 Transesophageal Transducer
Instructions for Use 6 - 7
Friction Brakes (V5Ms)
The friction brakes lock the deflection positions of the distal tip. When the brakes are engaged,
you can change the imaging scan plane without losing acoustical contact.
A friction brake is located on each side of the transducer handle. The friction brakes are color-
coded to match their corresponding flex control.

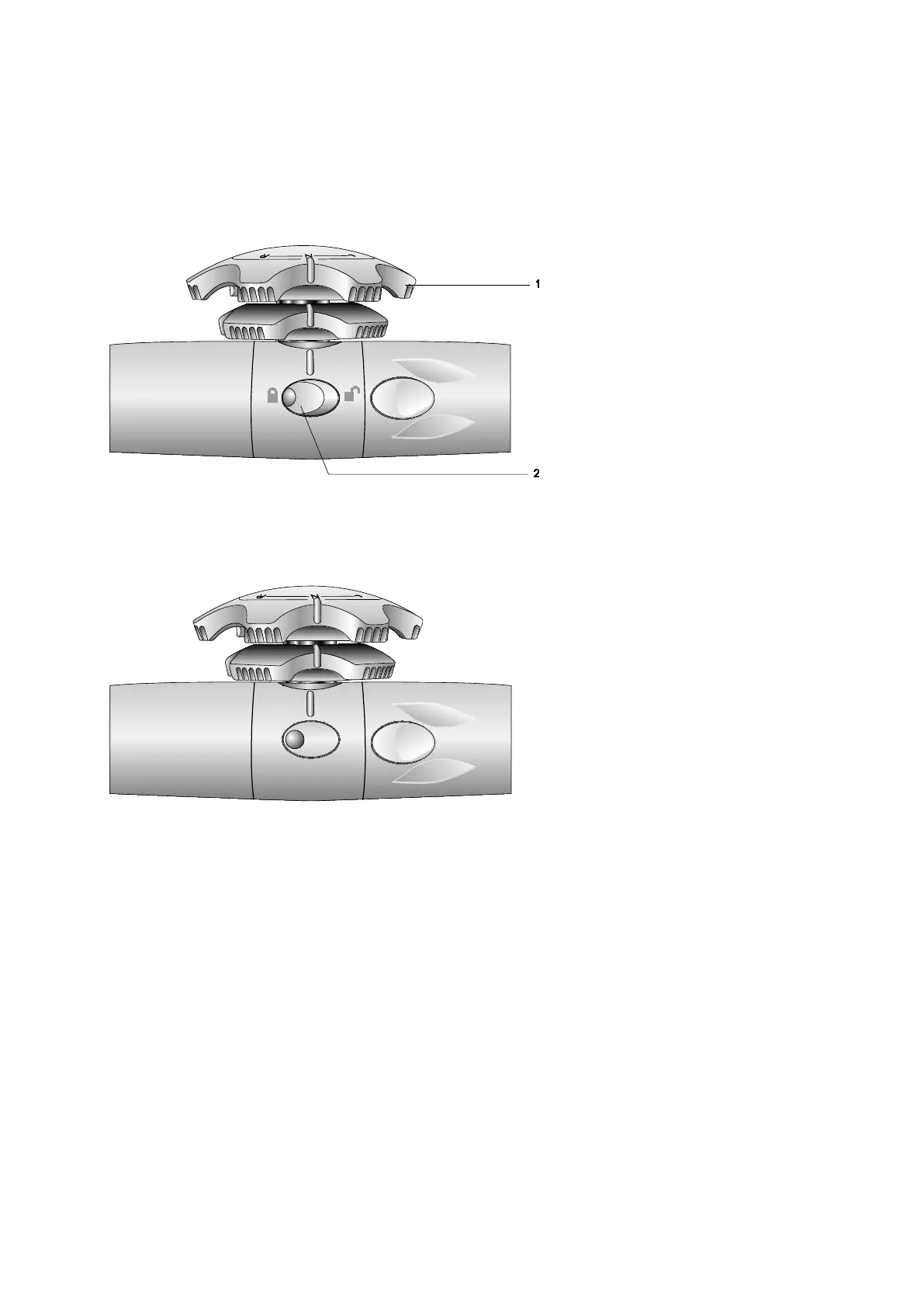

Example of V5Ms transducer with locked/unlocked icons. Brake for Anterior/Posterior flex control is in
the locked position.
1 Anterior/Posterior flex control (light gray)
2 Brake for Anterior/Posterior flex control (light gray)
Example of V5Ms transducer without locked/unlocked icons. Brake for Anterior/Posterior flex control
is in the unlocked position.
To lock the anterior/posterior deflection position of the distal tip:
 Press the raised tactile indicator located on the button of the corresponding brake.
To unlock a brake:
 Press the flat portion on the button of the corresponding brake.
