Appendix E Advanced Feature Controls
E - 34 Instructions for Use
syngo Auto Left Heart Controls

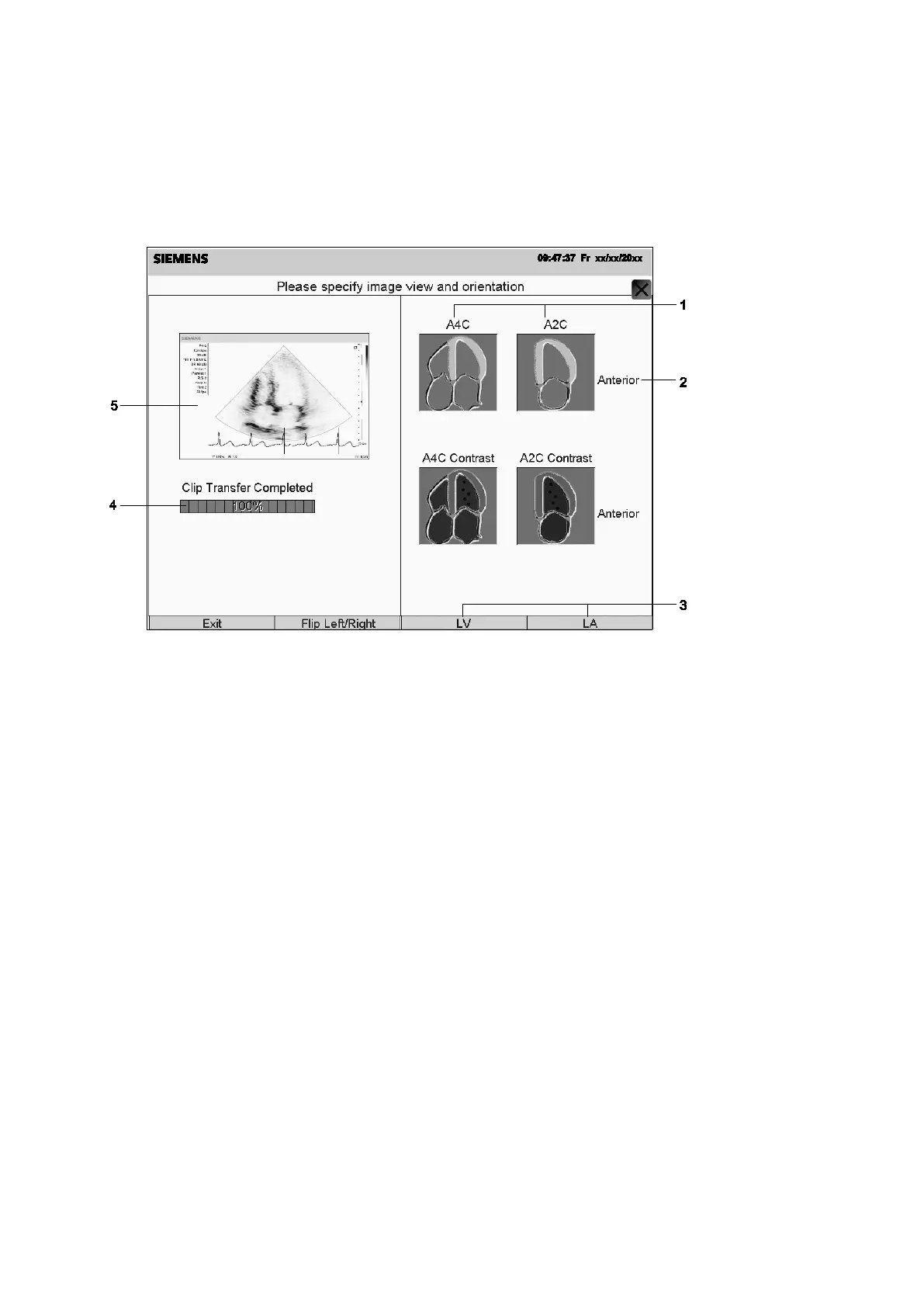

Example of View Selection Screen
The program displays the view selection screen when you activate syngo Auto Left Heart. The
view selection screen prompts you to select a chamber and image view.
1 A4C and A2C view selections
2 Anterior or inferior left ventricular or left atrial wall indicator for A2C view only
3 LV and LA chamber selections
4 Clip Transfer progress indicator
5 Image from a clip
Note: The contrast view buttons do not display when LA is selected.
