Appendix C Control Panel
Instructions for Use C - 13
Transmit Power

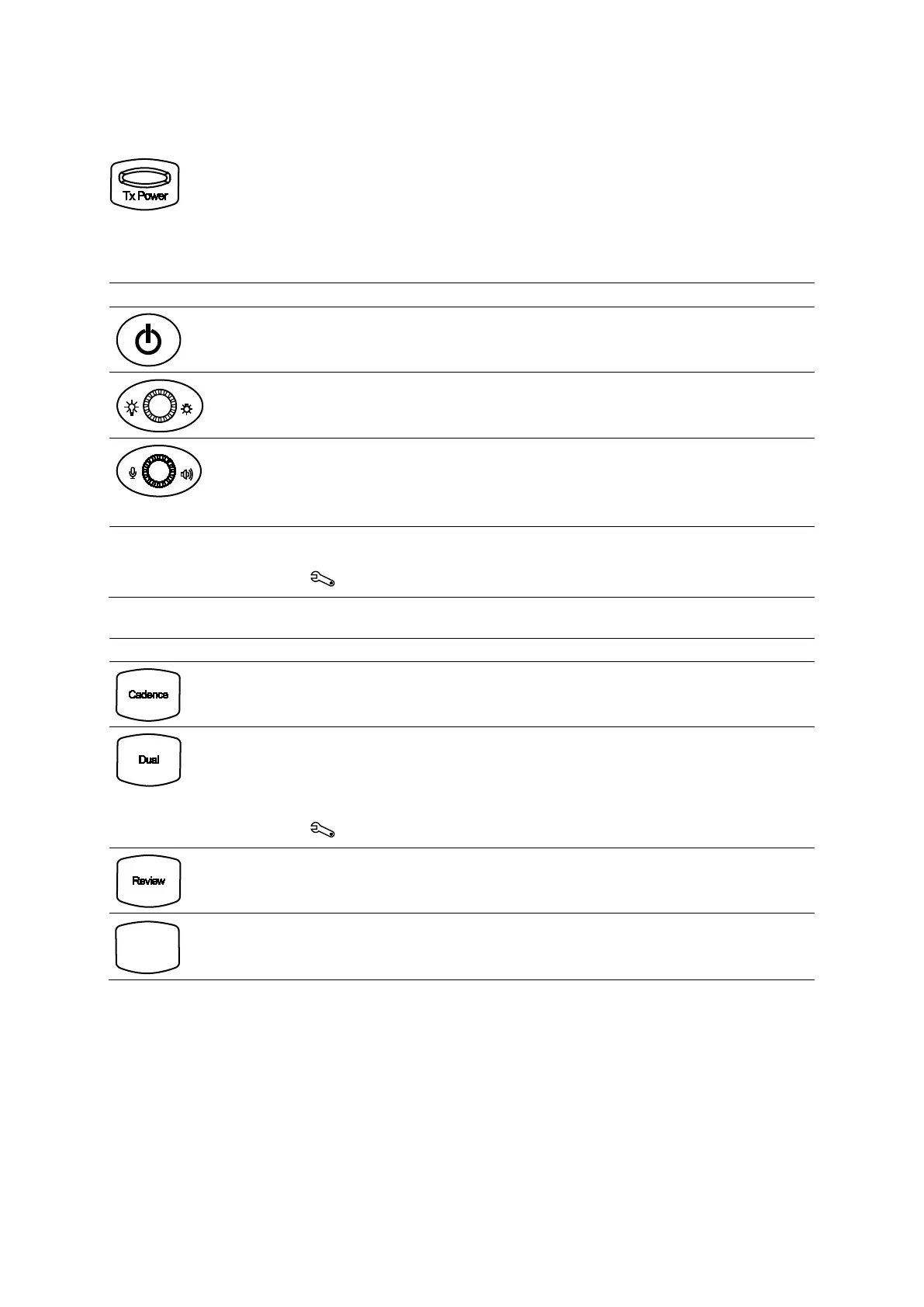

Press TX POWER up or down to adjust the transmit power for the active priority mode.
Power, Lighting, Sound, and Special Function Controls
Powers the ultrasound system on or off.
Press the control to activate back lighting or task lighting.
Rotate the control to adjust the lighting level.
Note: When you activate the microphone function, the system disables Doppler
audio.
Press the control to activate the microphone function during video recording.
Rotate the control to adjust the Doppler signal volume.
--- Use the footswitch as an alternative to operating keys on the control panel.
Use the system configuration menu to assign functions to the footswitch pedals.
System Config > Footswitch/UD
Other Imaging Controls
CADENCE
Press CADENCE to activate the default contrast imaging modes and provide access
to other contrast imaging modes.
DUAL Press DUAL to activate or deactivate dual imaging.
During contrast agent imaging, the DUAL key activates or deactivates live dual
display format.
Use the system configuration menu to select the dual format that displays when you
activate dual imaging.
System Config > Basic System
REVIEW
Press REVIEW to activate or deactivate the Review screen. Use the review function
to view previously saved images and clips during the active exam or from a previous
exam.
--- (Left blank key) Hides or redisplays the menu located on the left side of the screen.
(Right blank key) Hides or redisplays the thumbnail panel and the soft key selections
to increase or decrease the space available on the screen for the image.
