6 Transesophageal Transducer
Instructions for Use 6 - 19
Imaging with the V5Ms Transducer
When you connect a transesophageal transducer to the system, the system displays a
transducer-specific message.
Transducer Message Displays When Recommended Action
V5Ms Safety Instructions
Review the warnings and
precautions as cited in the user's
manual for safety leakage current
testing, proper use, inspection, and
disinfection prior to each use in
order to reduce the likelihood of
The V5Ms transducer
is selected.
Click Close.

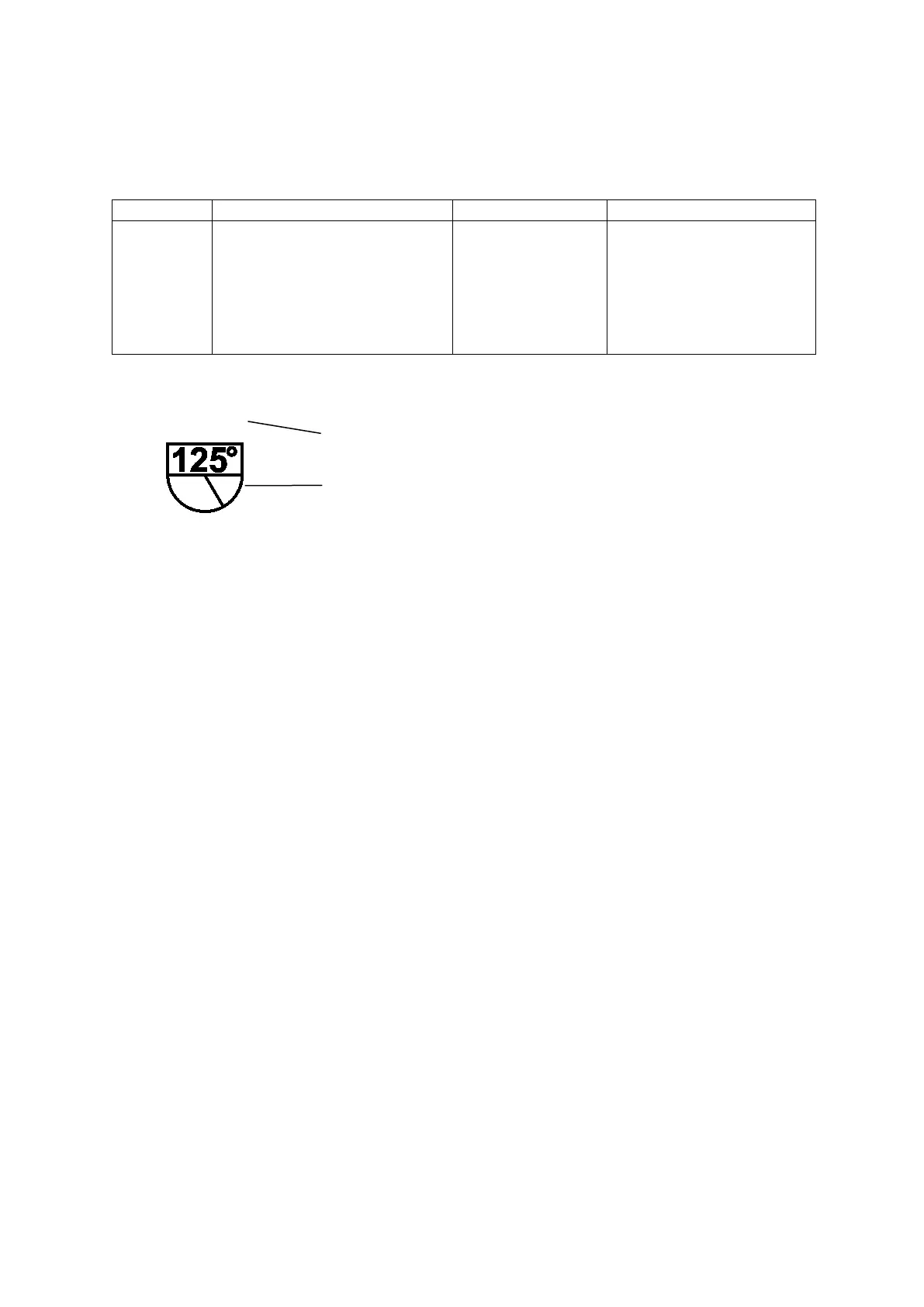

During imaging with the transesophageal transducer, information displays on the image screen
regarding the rotation angle of the transducer array and regarding an indication of temperature
at the lens surface of the transducer array.
Lens Temp: <37°C
The Scan Plane Icon indicates the approximate rotation angle of the imaging scan plane.
1 Temperature Indicator
Displays as <37°C until the temperature rises above 37°C
2 Rotation Angle of the transducer array
