6 Transesophageal Transducer
Instructions for Use 6 - 9
About the V7M Transducer
The V7M is a multi-frequency, multi-plane, phased sector array transducer.
The V7M transducer supports the following modes:
 2D-mode
 M-mode
 Pulsed Wave Doppler
 Steerable Continuous Wave Doppler
 Color Doppler Velocity
 Color DTI
 Pulsed Wave DTI
 Anatomical M-mode

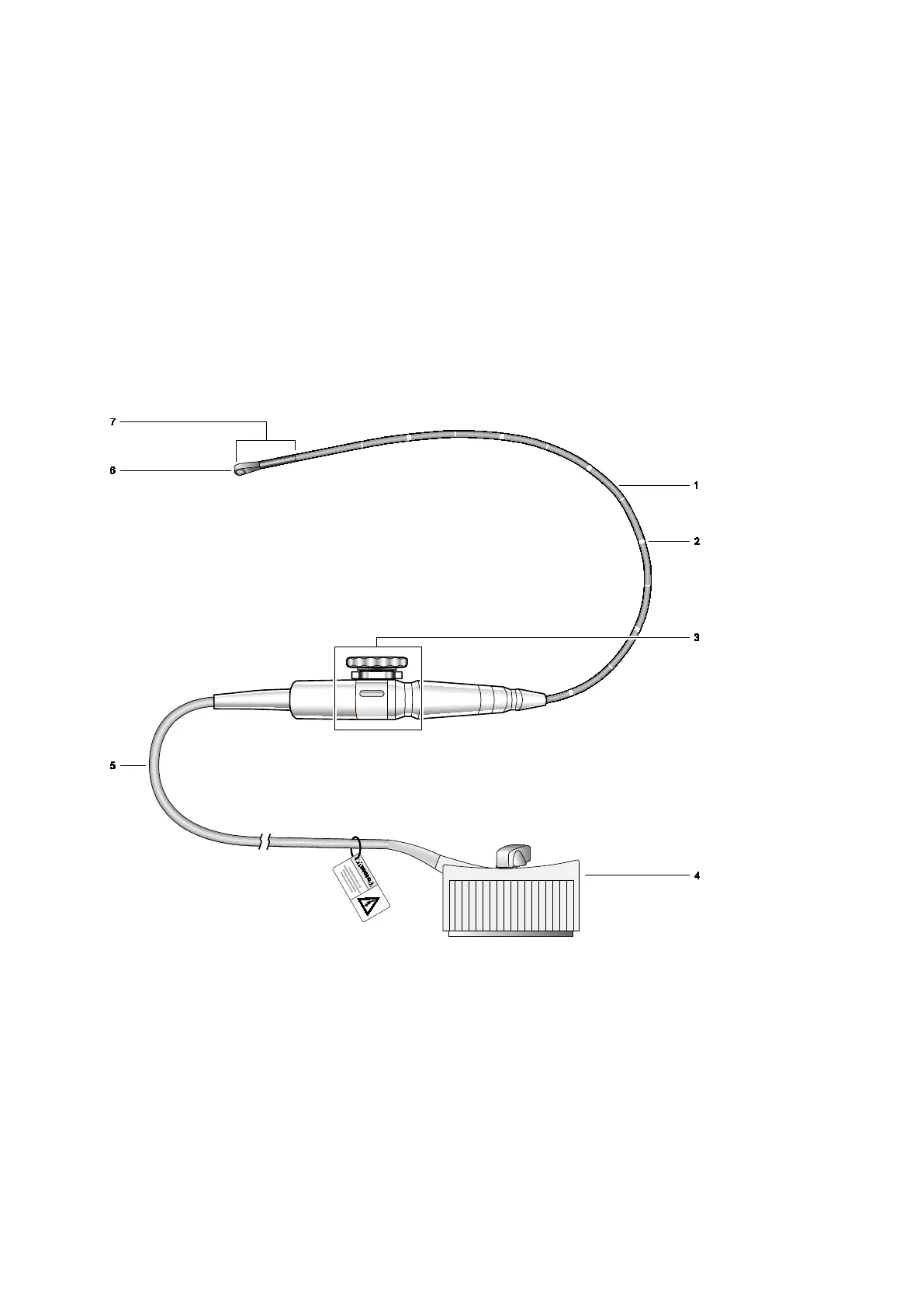

Example of the V7M transducer.
1 Flexible shaft
2 Depth markings (in centimeters)
3 Transducer controls
4 Transducer connector
5 Cable
6 Distal tip (contains rotating array)
7 Articulating section
