Appendix B Control Panel and Touch Screen
Instructions for Use B - 11

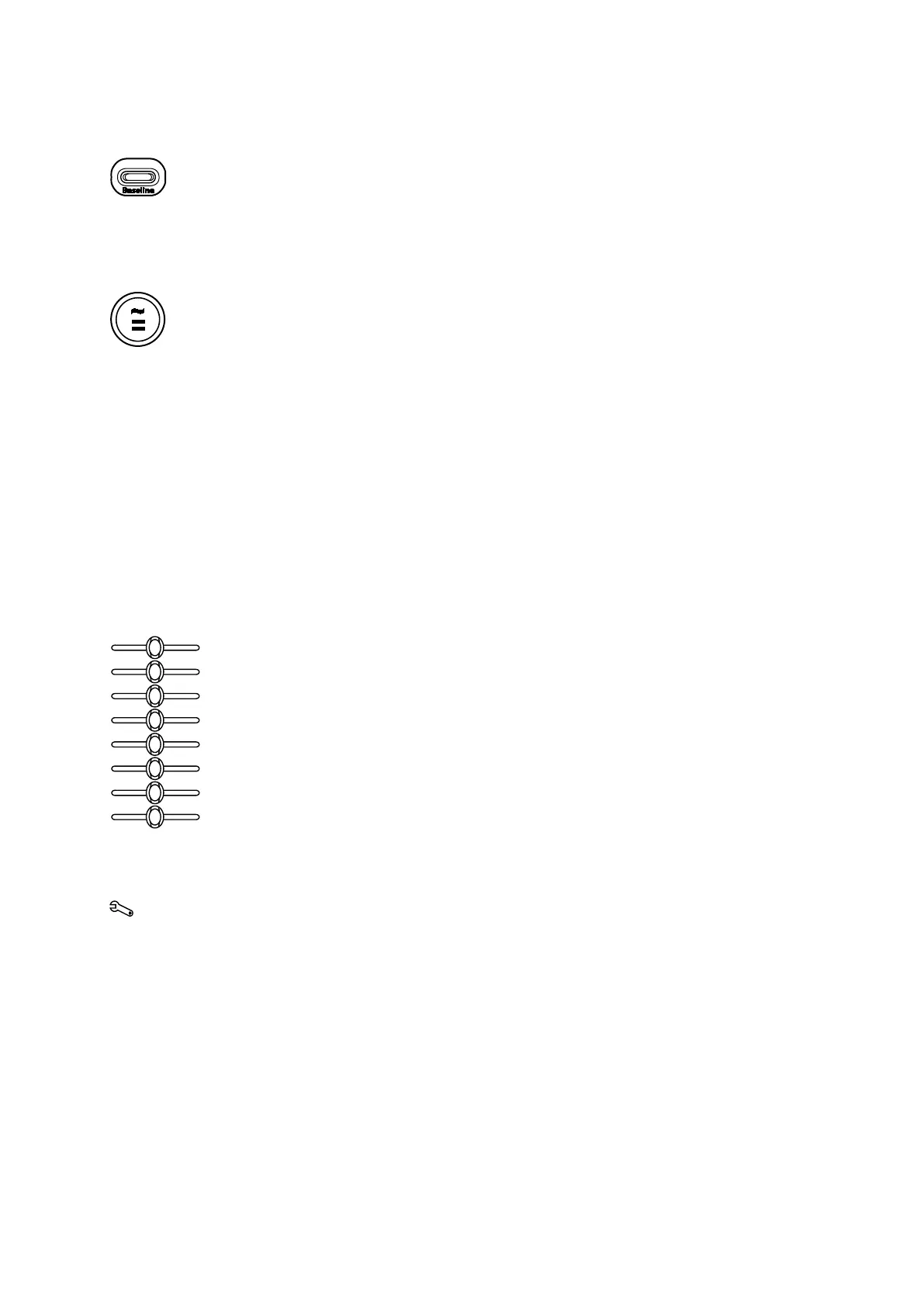

Baseline
Adjusts the position of the spectral or color baseline. During combined mode imaging, affects
only the active priority mode.
TEQ
Note: When TEQ is active, the TEQ icon displays on the image screen. The TEQ icon is the symbol
shown on the control. When eSieImage optimization is active, the system displays the TEQ icon in
gold.
(In combined mode imaging, TEQ affects only the active priority mode)
 Activates TEQ (Tissue Equalization technology).
 Deactivates TEQ when you double-click the control.
 Activates eSieImage Multiparametric Optimization when scanning with a compatible
transducer and supported exam.
See also: For information about this feature, refer to Appendix A in this manual.
 Disables eSieImage Multiparametric Optimization when you double-click the control. You
can then manually adjust the gain.
DGC Slider Controls
Adjusts the depth gain compensation.
Use the system configuration menu to specify a default setting of maximum depth or current
depth and to enable or disable the display of the DGC curve graphic on the image screen.
System Config > Basic System
