Siemens Acuson S3000 User Manual

Appendix C Control Panel
Instructions for Use C - 11

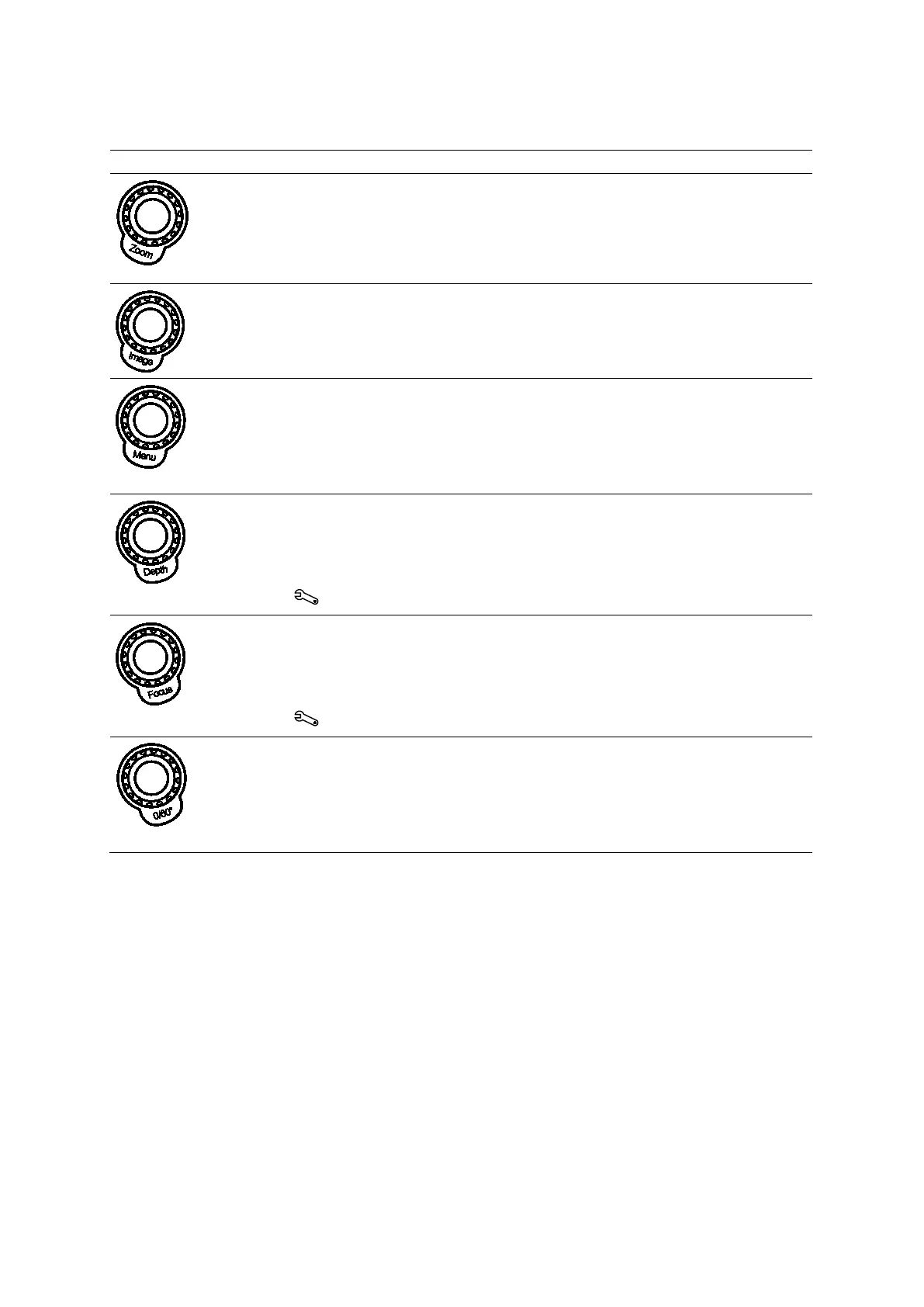

Image Optimization Controls
Key
Name
Description
ZOOM
Rotate ZOOM to activate or deactivate the zoom function and change the image
magnification. The system displays a Z on the image screen when zoom is activated.
Press ZOOM to activate or deactivate the zoom function with enhanced resolution. The
system displays HD on the image screen when high-density zoom is activated.
Press ZOOM and then roll the trackball to reposition or resize the region of interest
(ROI). Press NEXT to alternate the resizing function with the repositioning function.
Press IMAGE to view a list of all currently available image optimization presets or to
create a user-defined image preset.
Rotate IMAGE to select the required optimization presets. The imaging parameters are
updated as you rotate the control. During combined mode imaging, the selected setting
affects the active priority mode.
MENU Press MENU to activate or deactivate a selection.
Rotate MENU to cycle through the menu selections.
This control illuminates white when available and does not illuminate when not
available.
Rotate MENU during a protocol to select the PREVIOUS or NEXT control for scrolling
the thumbnail panel. Press MENU to scroll the thumbnail panel.
DEPTH Rotate DEPTH to change the imaging depth.
When the slice function is activated during 3D imaging or during 4D system freeze,
rotate DEPTH to step through the slices.
Use the system configuration menu to assign the direction (clockwise or
counterclockwise) for increase or decrease.
System Config > Basic System 2
FOCUS
Press FOCUS to display the focal zone marker selections. Rotate FOCUS to cycle
through the selections. Press FOCUS to select the required number of focal zones.
Rotate FOCUS to reposition the focal zone markers.
Use the system configuration menu to assign the rotation direction (clockwise or
counterclockwise) to increase or decrease.
System Config > Basic System 2
0/60° Press 0/60° to cycle through the angle correction selections (60, 0, -60).
Rotate 0/60° to adjust angle correction values in one degree increments between
60 and -60 degrees.
During cardiac exams with M-mode imaging, rotate 0/60° to activate anatomical
M-mode and adjust the angle of the anatomical M-mode cursor.
When anatomical M-mode is activated, press
0/60°
to exit anatomical M-mode.
