Appendix C Control Panel
Instructions for Use C - 9

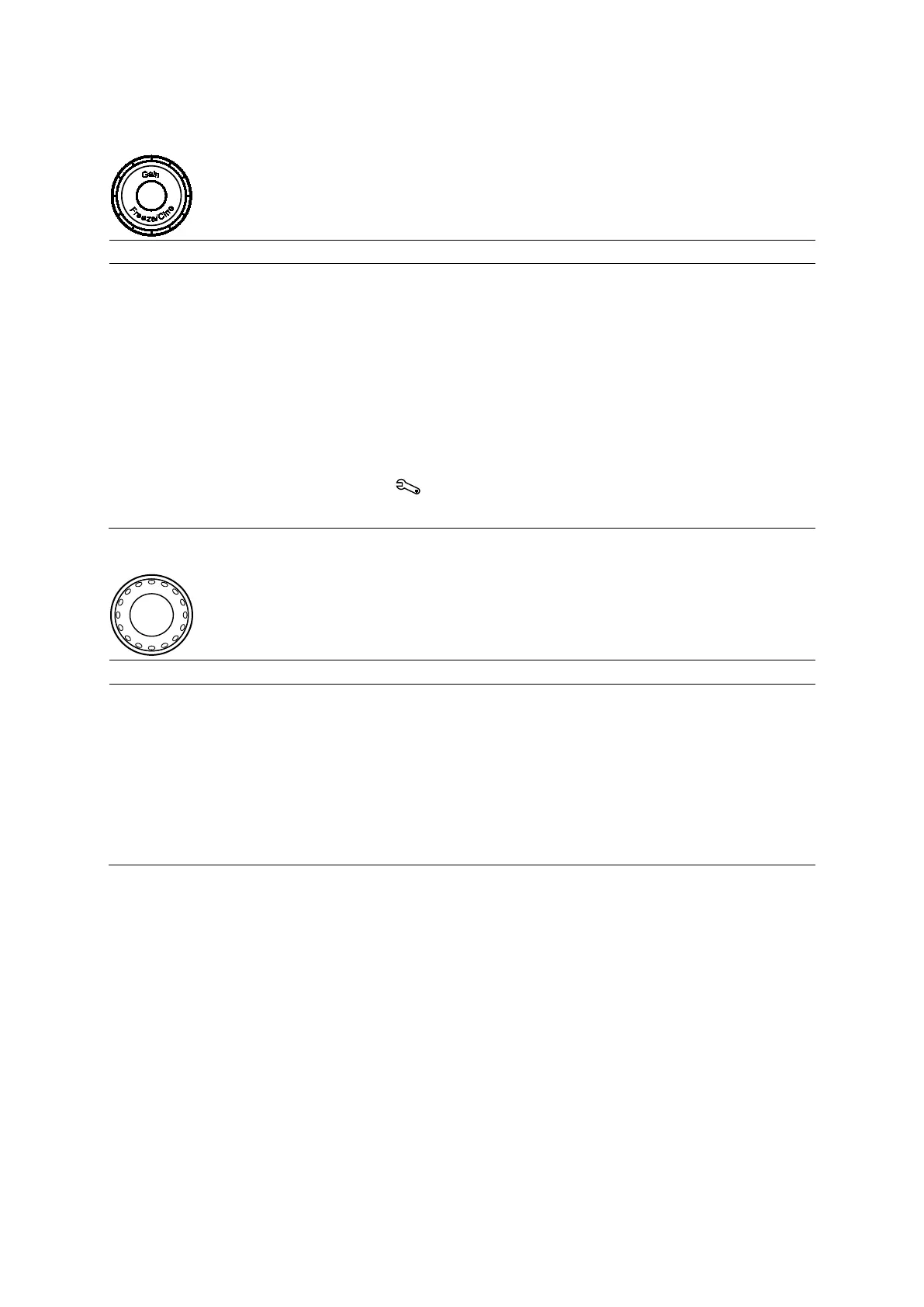

Gain Freeze/Cine
GAIN FREEZE/CINE Imaging
Rotate GAIN FREEZE/CINE to adjust the gain for the active priority
mode.
Note: The Gain label does not illuminate.
Press GAIN FREEZE/CINE to freeze an image, sweep, or spectrum or
restore real-time imaging.
The Freeze/Cine label is illuminated white during real-time imaging
and illuminated green when the system is frozen.
Review
Depending on system configuration, press GAIN FREEZE/CINE to
play or pause clip playback or to exit review.
Use the system configuration menu to select the function assigned to
pressing GAIN FREEZE/CINE during review.
System Config > Basic System 2
--- Rotate GAIN FREEZE/CINE to view a clip frame-by-frame.
Imaging Mode Controls
2D 2D-mode ---
Press 2D to activate 2D-mode grayscale imaging, except during live
4D or 3D/4D imaging.
Rotate 2D to adjust the gain.
Imaging
(frozen 2D-mode)
Activates real-time imaging.
Live 4D or 3D Displays the live 4D or 3D preview screen.
4D
Cancels acquisition and displays the 4D setup selections on the image
menu.
Stress Echo Pauses the stress echo protocol.
To Next Page
