Print-Quality Troubleshooting 5-9
Resolution
Actions and Questions Yes No
Observe the three resolution check points on several Test Prints.
Check the resolution of the images in each of the following
areas:
■ Arrow 1: The two pixel vertical, horizontal, and diagonal lines
should be clear and continuous. The diagonal lines might appear
to be narrower than the others.
■ Arrow 2: The text paragraphs should be roughly equal in
density.
■ Arrow 3: The half-tone patches adjacent to the solid blocks in
the corners should be uniform in appearance.
Are the three check points (arrows 1, 2, and 3) within
specification?
The printed
test patterns
meet the
Resolution
Specification.
Go to
“Registration
(Side-to-
Side)” on
page 5-10.
Go to
“Resolution”
on
page 5-36.

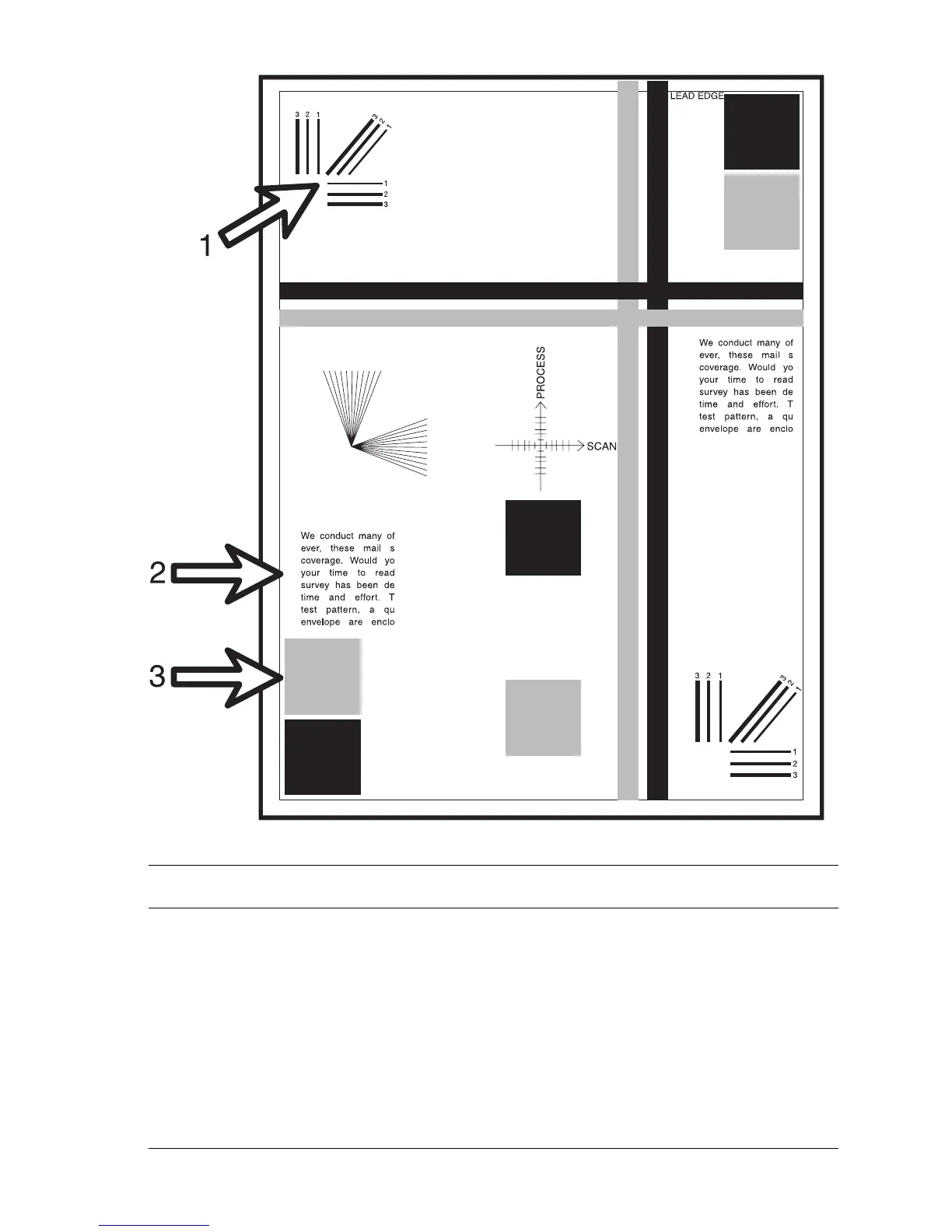

s4500-263
Test Print
Phaser4500-030129-2-S
8.5x11 (SEF)
To Next Page
