Xerox Phaser 4500 Service Manual

FRU Disassembly 8-107
Nudger One-way Clutch
(PL20.2.15)
1. Remove the Feed Roller (page 8-106).
2. Pull out the One-way Feed Clutch from the Feed Shaft.
3. Remove the E-ring that secures the Nudger One-way Clutch to the Feed Shaft.
4. Pull out the Nudger One-way Clutch from the Feed Shaft.

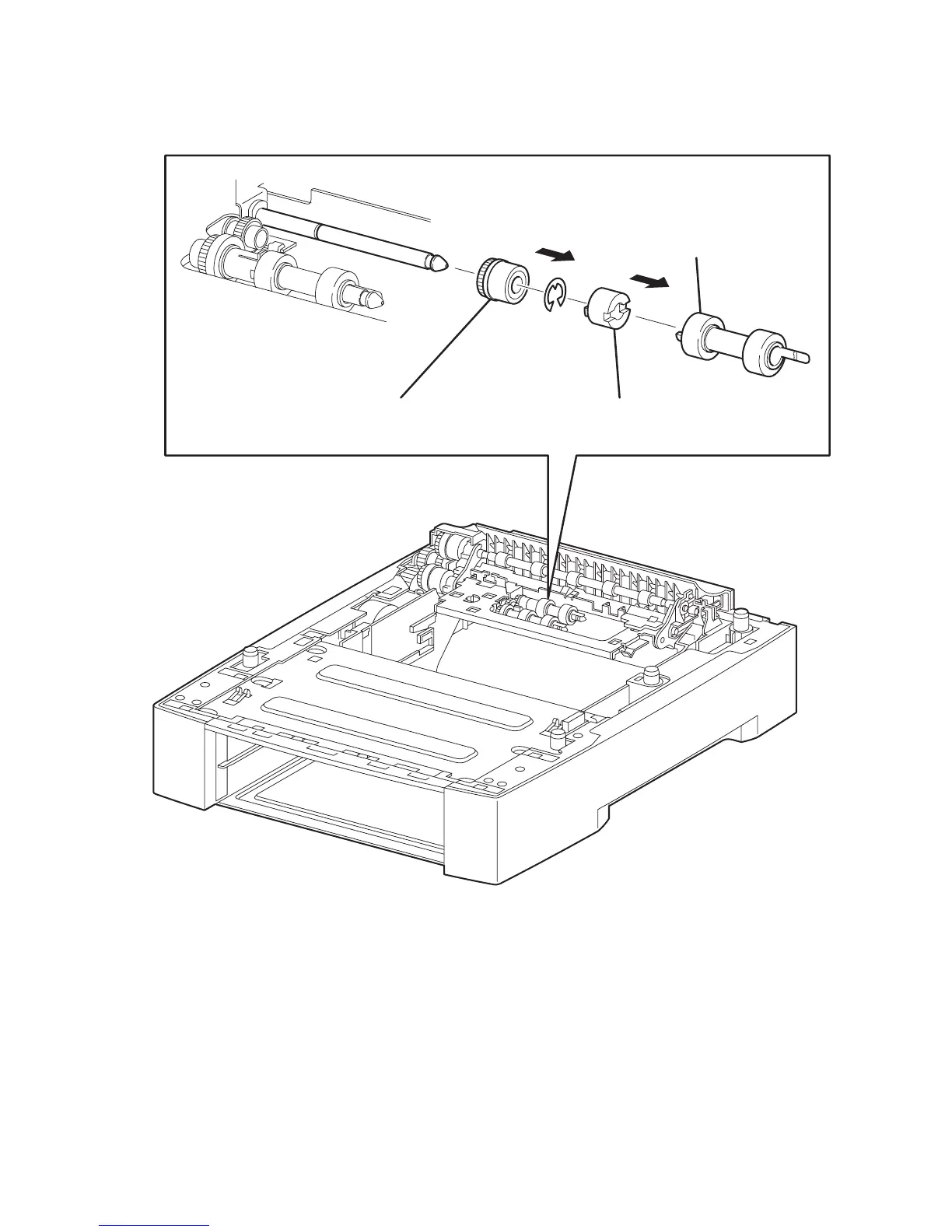

1. Nudger One-way Clutch 3. Feed Roller
2. One-way Feed clutch
s4500-162
1
2
3
