8-100 Phaser 4500 Service Manual
Optional Feeder Drive Assembly
(PL20.1.8)
1. Remove the optional 550-Sheet Paper Feeder (page 8-93).
2. Remove the Left Cover Plate (page 8-97).

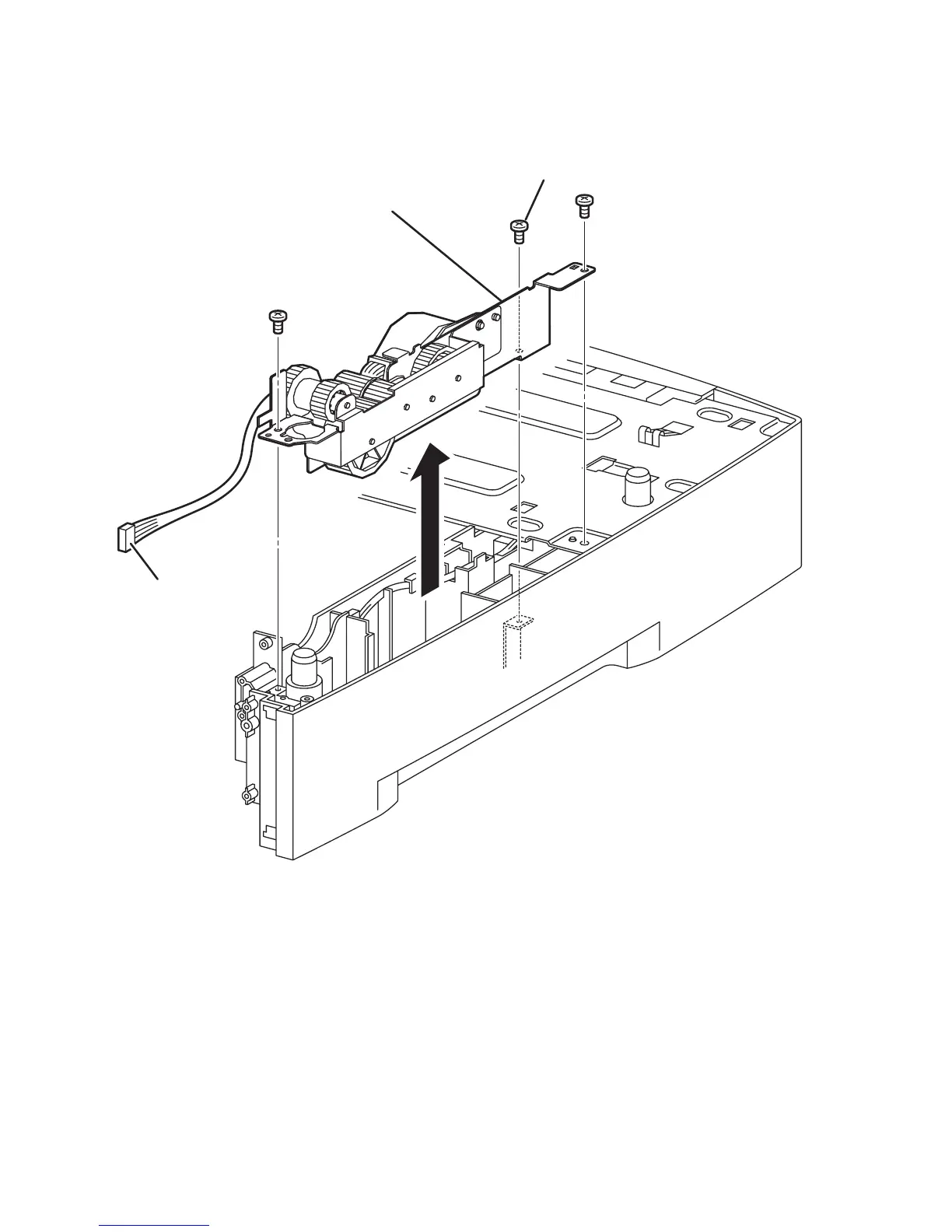

1. Optional Feeder Drive Assembly 2. Screw A
s4500-156
1
2
J820
