Front Panel

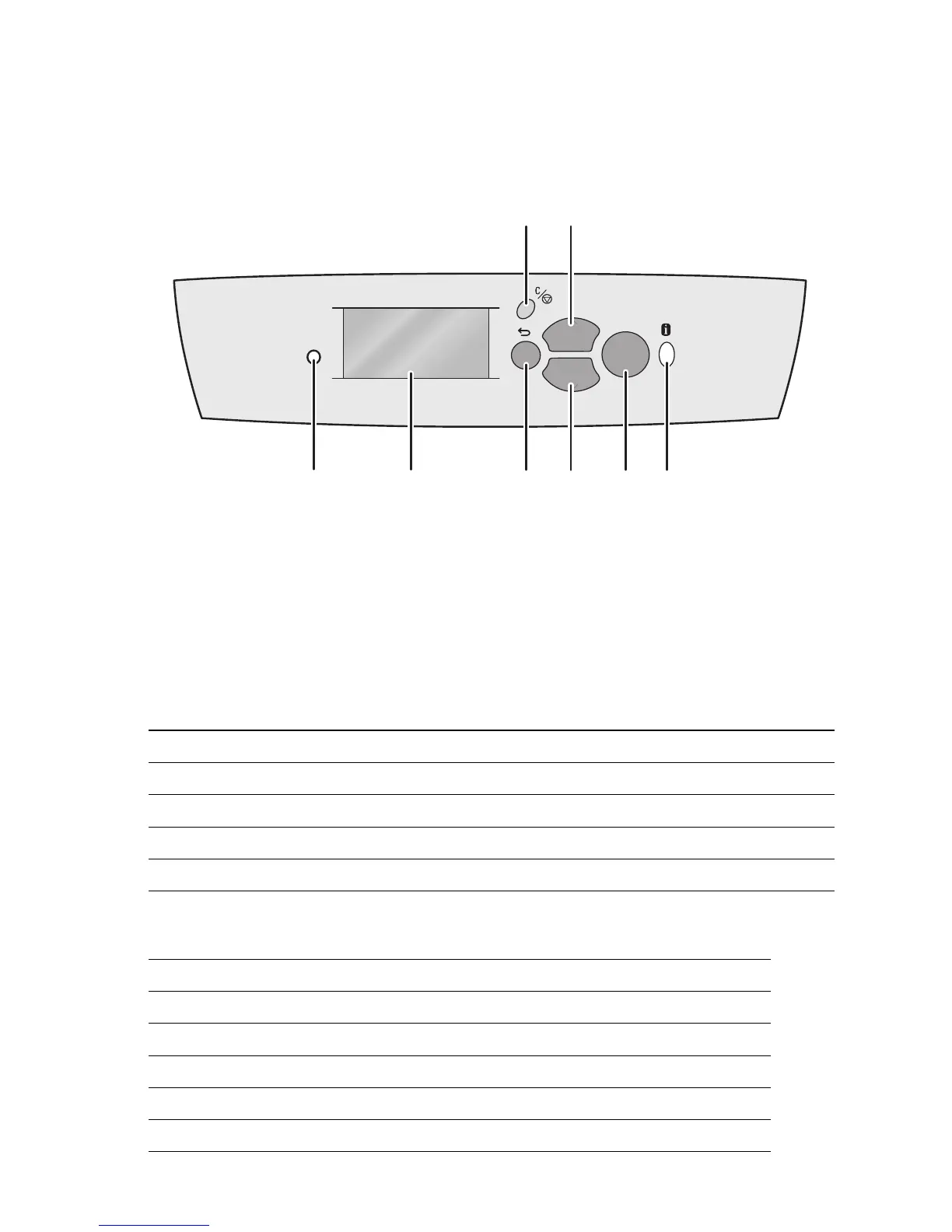

The Front Panel consists of one tricolor LED, a display window, and six functional
buttons.
LED States
Front Panel Shortcuts
1. LED 5. Up Arrow button - scrolls up the menu system
2. Graphic front panel display 6. Down Arrow button - scrolls down the menu system
3. Cancel button 7. OK (select) button
4. Back button 8. Information button - for additional explanation or help
LED State Printer State
Green Ready to Print or in Power Saver mode
Flashing Yellow Warning (but can still print)
Flashing Green In Standby mode or busy (receiving data, processing data, printing)
Flashing Red Error; cannot print
Mode Buttons Pressed at Power On
Skip execution of POST diagnostics OK
Print Service Diagnostics Map Information
Reset PostScript NVRAM Back + OK
Password Bypass Up Arrow + Down Arrow
Enter Service Diagnostics Back + Information
OK
