Xerox Phaser 4500 Service Manual

FRU Disassembly 8-71
Gear Assembly Housing
(PL11.1.3)
1. Remove the Left Cover (page 8-9).
2. Remove the LVPS Shield Plate (page 8-75).
3. Unplug J44 (Rear Cover Switch cable) from P44 on the LVPS.
4. Release the wiring harnesses from the cable restraints on the Gear Assembly
Housing.

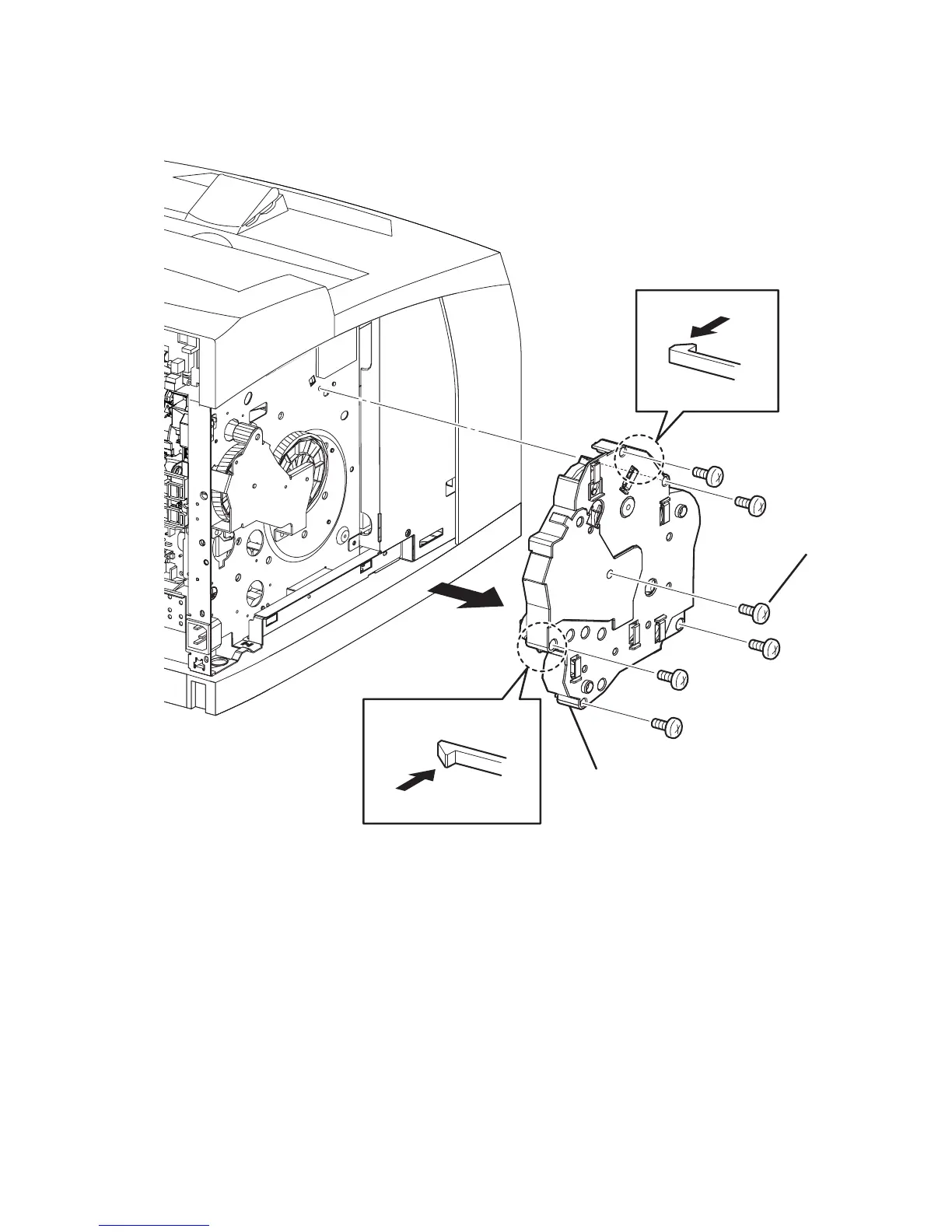

1. Gear Assembly Housing 2. Screw (A)
s4500-139
