8-18 Phaser 4500 Service Manual
Print Engine: 150-Sheet Feeder
150-Sheet Feeder Assembly
(PL5.1.1)
1. Remove the 150-Sheet Paper Cassette (Tray 1).
2. Remove the Fuser Assembly (page 8-54).
3. Remove the Main Fan (page 8-84).
4. Remove the Transfer Chute (page 8-56).
5. Disconnect the two harnesses, P/J 245 and P/J 221.
6. Swing the roller holder assembly up firmly until it latches in the detent.
7. Remove the five screws (gold, flanged, 8 mm) that attach the 150-Sheet Feeder
Assembly to the printer.

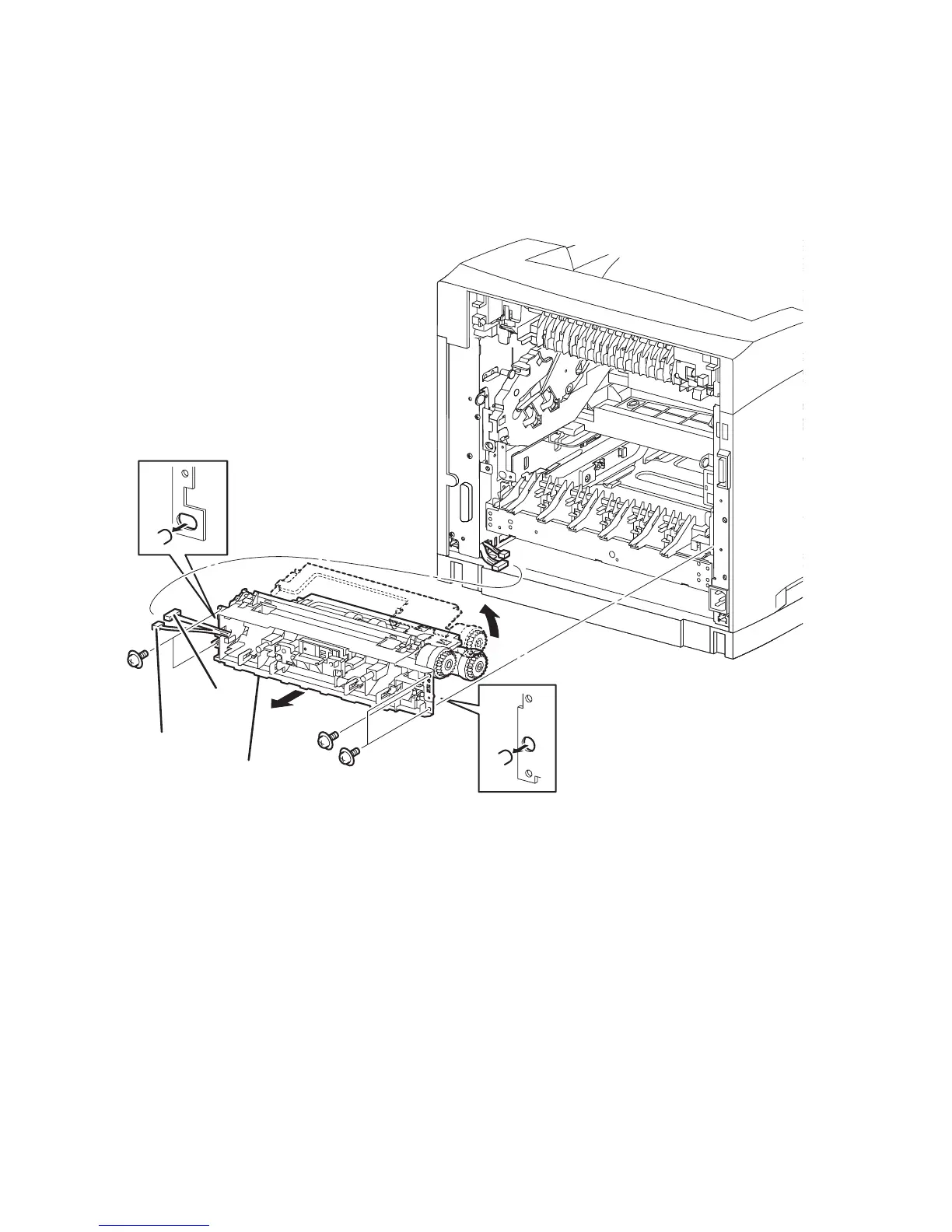

1. 150-Sheet Feeder Assembly
s4500-90
1
P/J 221
P/J 245
