Xerox Phaser 4500 Service Manual

FRU Disassembly 8-131
Duplex Unit Switch
(PL21.1.27)
1. Remove the Left Cover (page 8-117).
2. Remove the Top Cover (page 8-119).
3. Remove the Duplex Unit Motor bracket as described in the Duplex Unit Motor
procedure (page 8-129).
4. Disconnect the connector of the Duplex Unit Cover Assembly Harness from the
connector (P/J52) of the Duplex Unit Switch.
5. Release the hooks of the Duplex Unit Switch, and remove it from the Motor
Bracket.

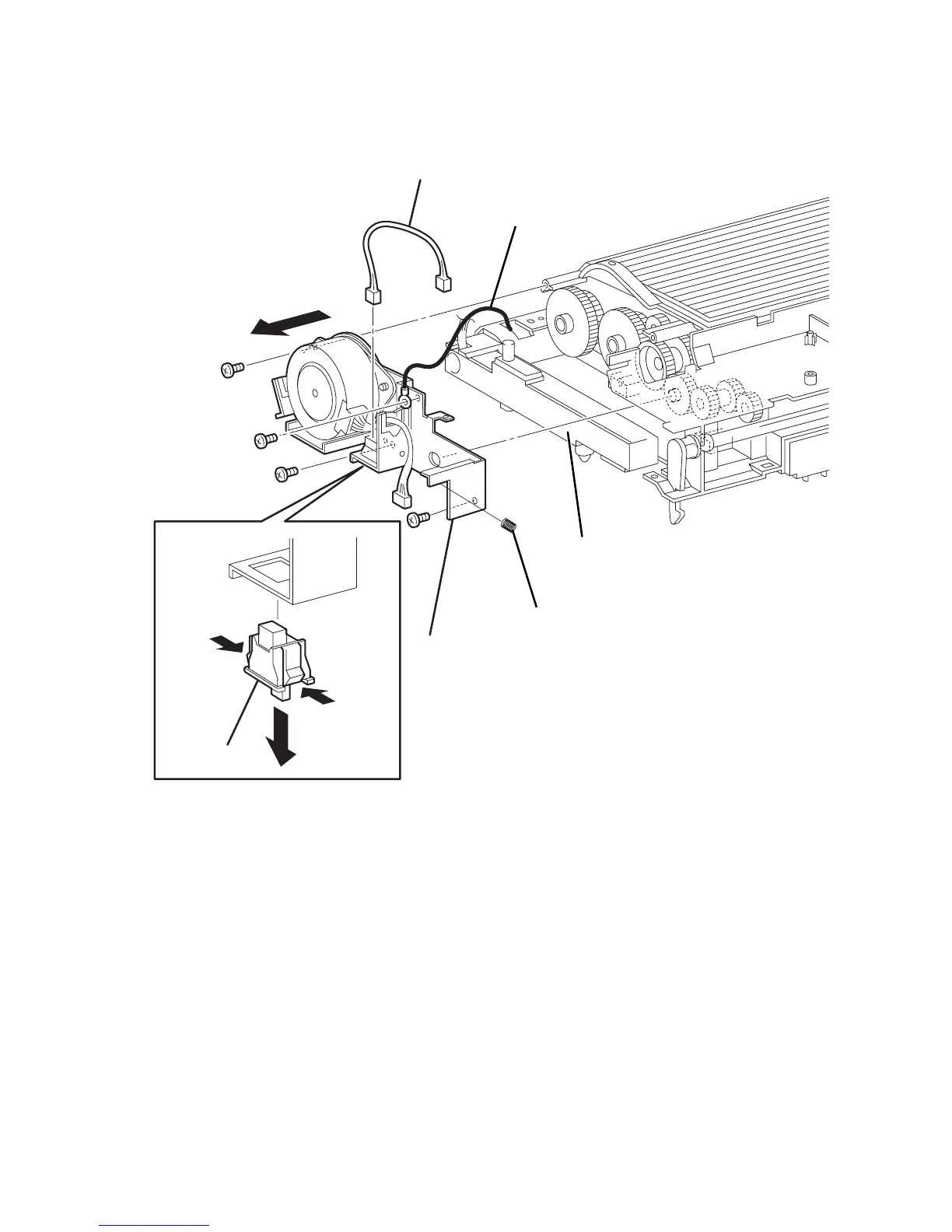

1. Duplex Unit Cover Harness 4. Motor Bracket
2. Duplex Unit Switch 5. Latch Spring
3. Duplex Unit Ground Wire 6. Duplex Unit Housing Cover
s4500-196
1
3
6
4
5
2
