Xerox Phaser 4500 Service Manual

8-64 Phaser 4500 Service Manual
Exit Motor Assembly
(PL10.1.15)
1. Remove the Paper Exit Assembly (page 8-61).
2. Remove the Upper Exit Chute (page 8-63).
3. Remove the two screws (silver machine, 6 mm) that attach the Exit Motor
Assembly to the Exit Motor Bracket.
4. Remove the Exit Motor Assembly.

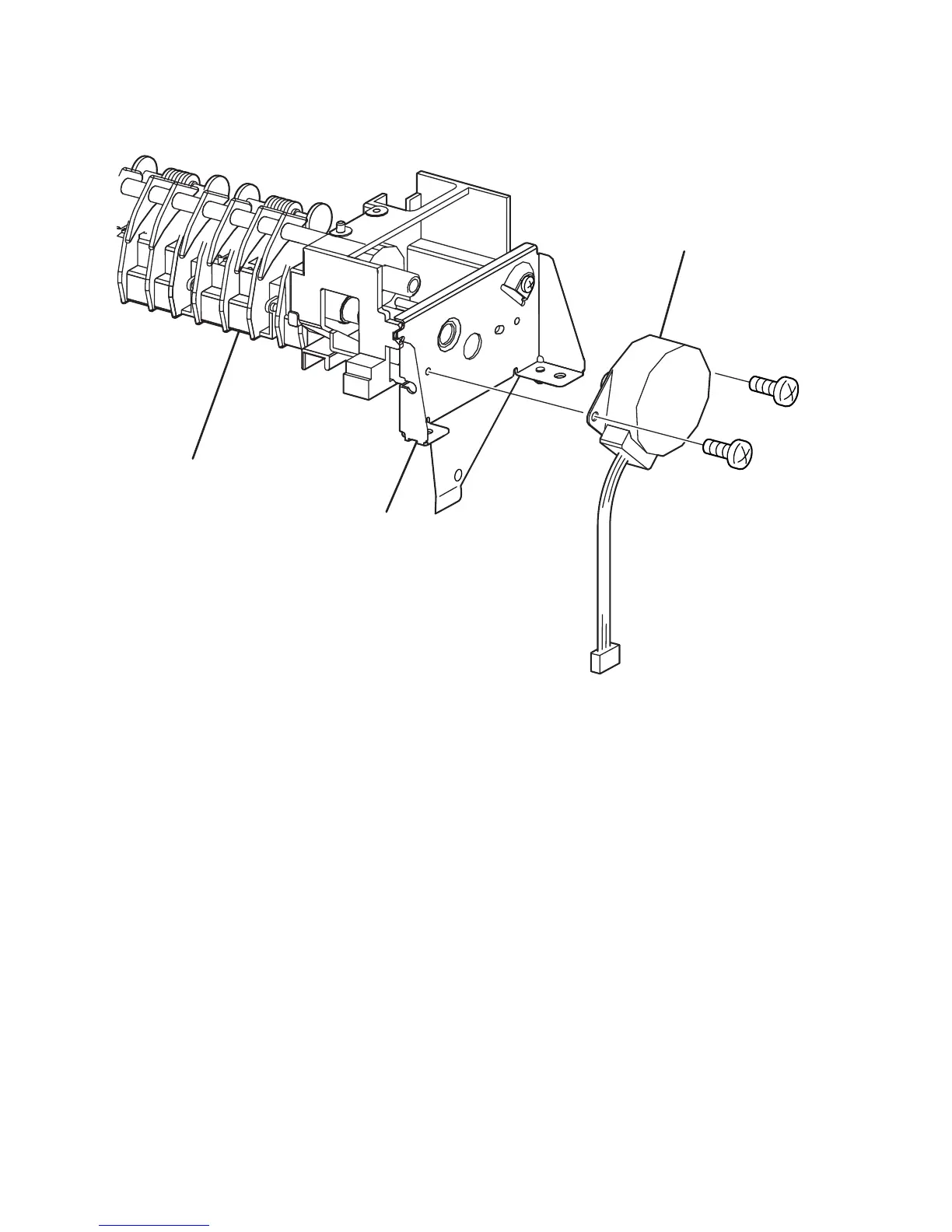

1. Lower Exit Chute 3. Exit Motor Assembly
2. Exit Motor Bracket
s4500-131
1
2
3
