Xerox Phaser 4500 Service Manual

8-126 Phaser 4500 Service Manual
Duplex Unit Sensor
(PL21.1.34)
1. Remove the Right Cover (page 8-118).
2. Remove the Top Cover (page 8-119).
3. Release the hooks of the Duplex Unit Sensor, and remove it from the Duplex Unit
Housing Cover.
4. Disconnect the connector (P/J530) of the Duplex Unit Assembly Harness SNR
form the Duplex Unit Sensor.

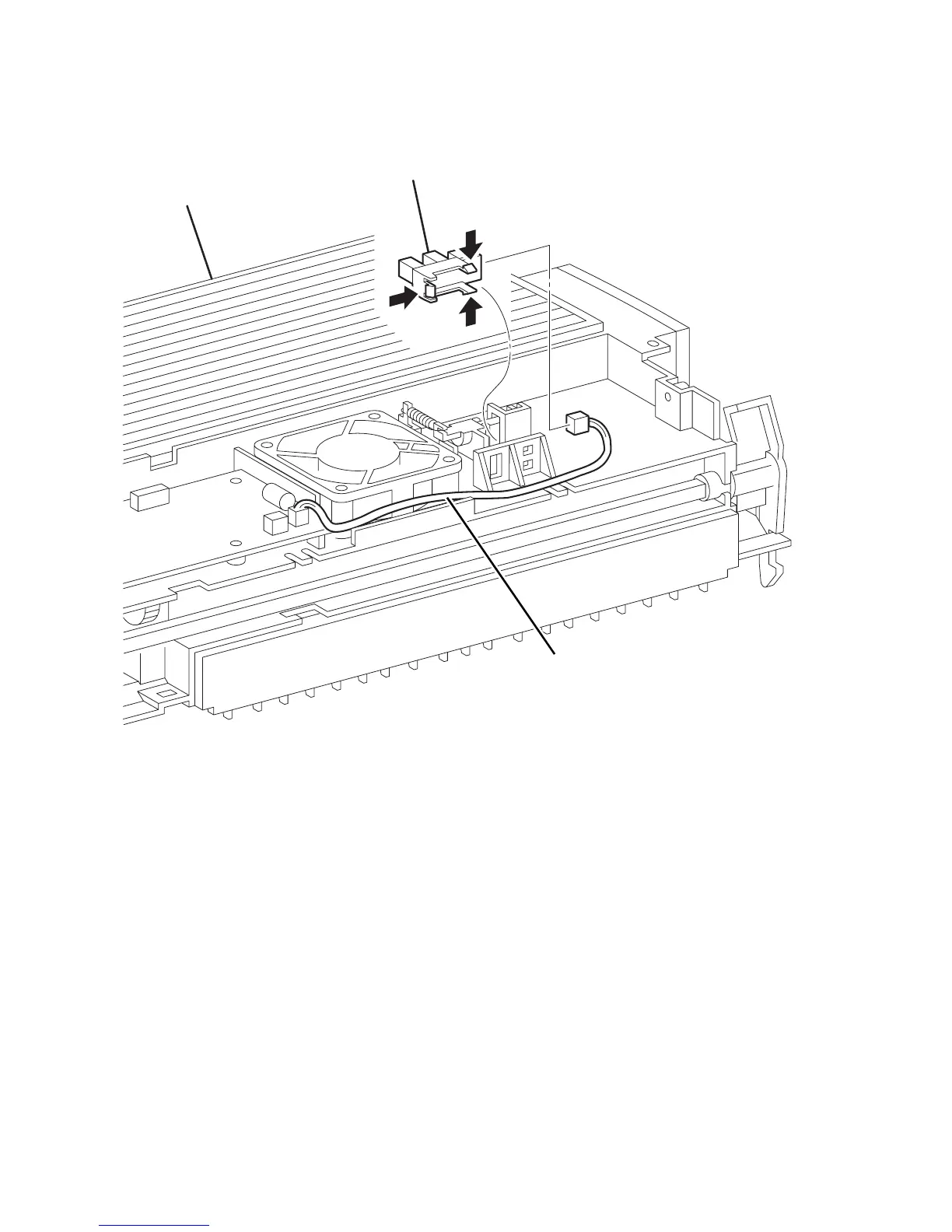

1. Duplex Unit Housing Cover 3. Duplex Unit Sensor Harness
2. Duplex Unit Sensor
s4500-191
1
2
3
