Xerox Phaser 4500 Service Manual

8-52 Phaser 4500 Service Manual
Link Lever, Gear 3 Link
(PL8.1.29) (PL8.1.30)
1. Remove the Transfer Roller Assembly (page 8-55).
2. Remove the Laser Unit Shield Plate (page 8-48).
3. Remove the LVPS Shield Plate (page 8-75).
4. Remove the Left Tray Guide (page 8-41).
5. Remove the Motor Cover (page 8-67).

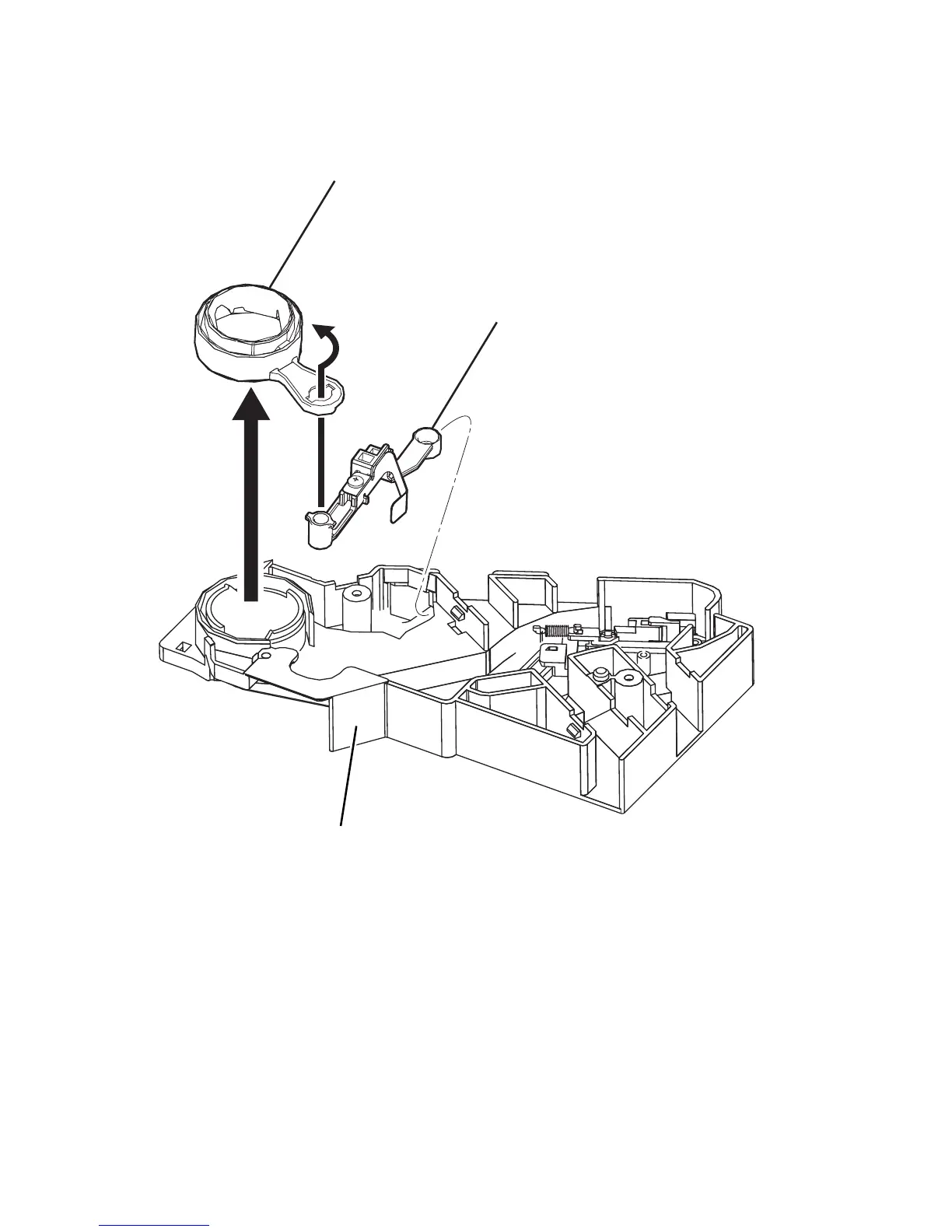

1. Gear 3 Link 3. Print Cartridge Left Guide
2. Link Lever
s4500-125
1
2
3
