Xerox Phaser 4500 Service Manual

FRU Disassembly 8-119
Top Cover
(PL21.1.12)
1. Remove the Right Cover (page 8-118).
2. Remove the screw (gold tapping, 8 mm) that attaches the Top Cover to the
Duplex Unit Housing Cover.
3. Shift the Top Cover in the direction of the arrow to release the four hooks, and
remove the Top Cover from the Duplex Unit Housing Cover.

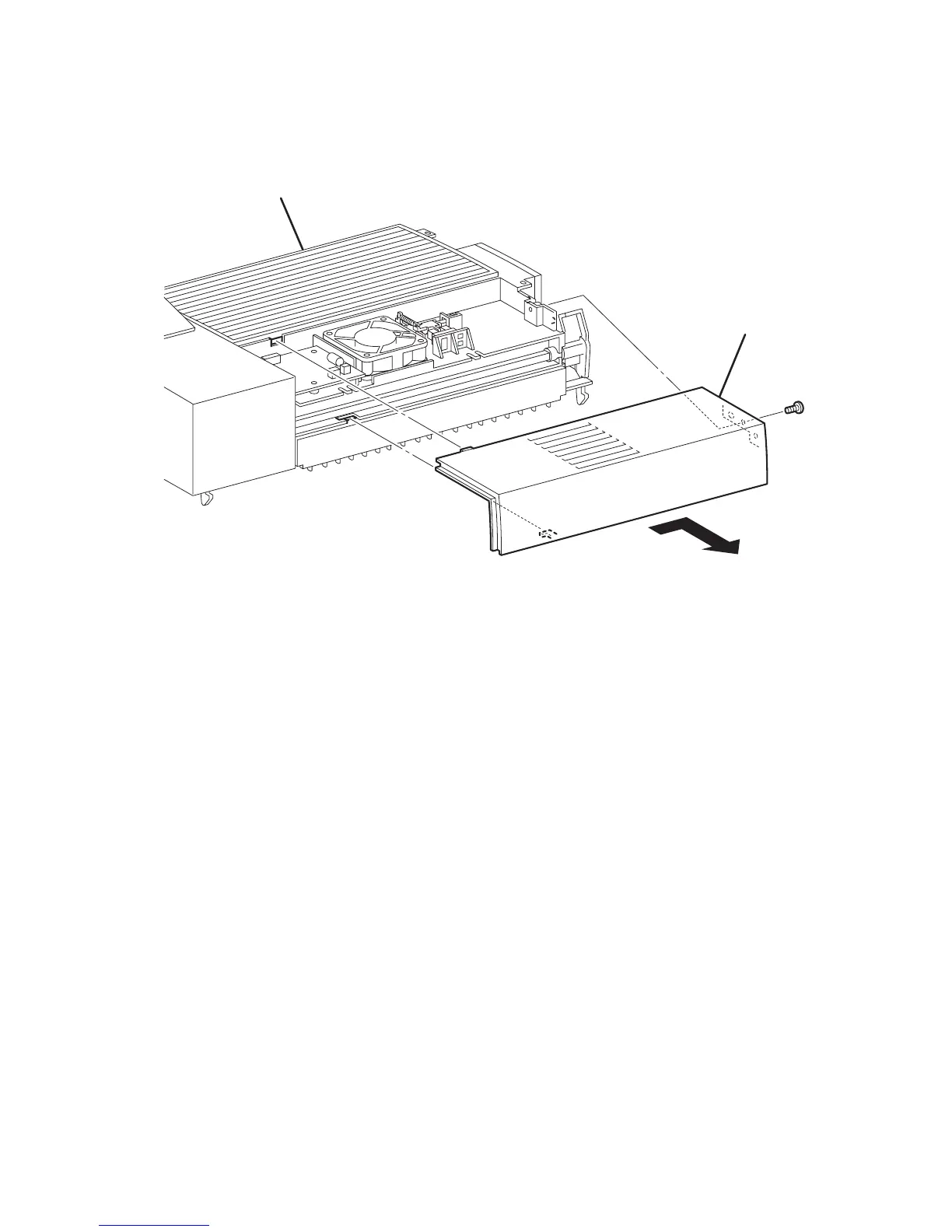

1. Top Cover 2. Duplex Unit Housing Cover
s4500-188
2
1
