8-44 Phaser 4500 Service Manual
Print Engine: Xerographics
Front Duct, Sub Fan
(PL8.1.4) (PL8.1.5)
1. Remove the Front Cover (page 8-12). Removing the Front Cover requires
removing all other printer covers and the Paper Exit Assembly.

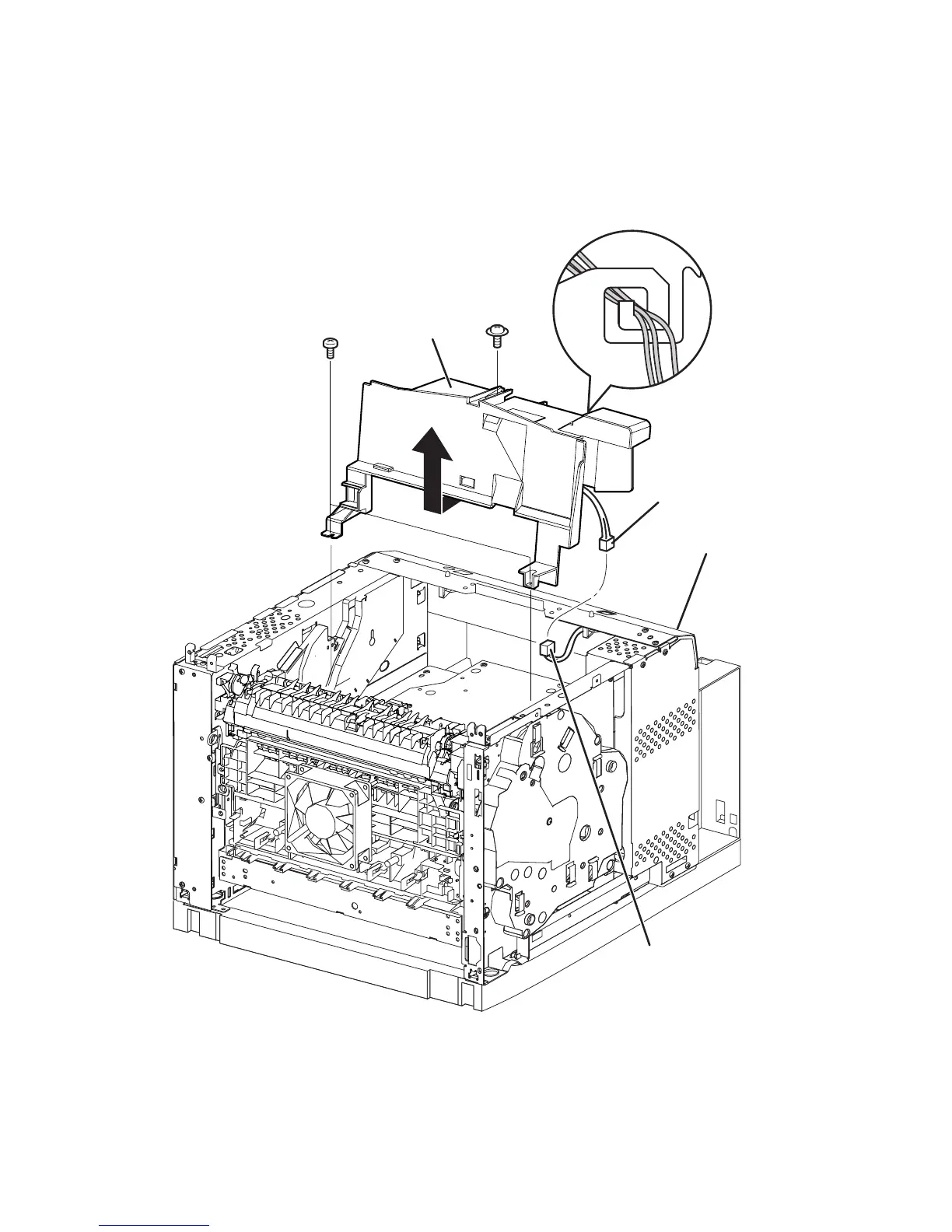

1. Front Duct 2. Front Tie Plate
P270
J270
s4500-112
1
2
