Xerox Phaser 4500 Service Manual

FRU Disassembly 8-83
Rear Cover Switch
(PL12.1.7)
Removal
1. Remove the LVPS Shield Plate (page 8-75).
2. Disconnect the connector (P/J44) of the Rear Cover Switch from the LVPS.
3. Release the Harness Assembly of the Rear Cover Switch from the clamps on the
Gear Assembly Housing.
4. Remove the screw (silver, 6 mm) that attaches the Rear Cover Switch to the
frame.
5. Remove the Rear Cover Switch.

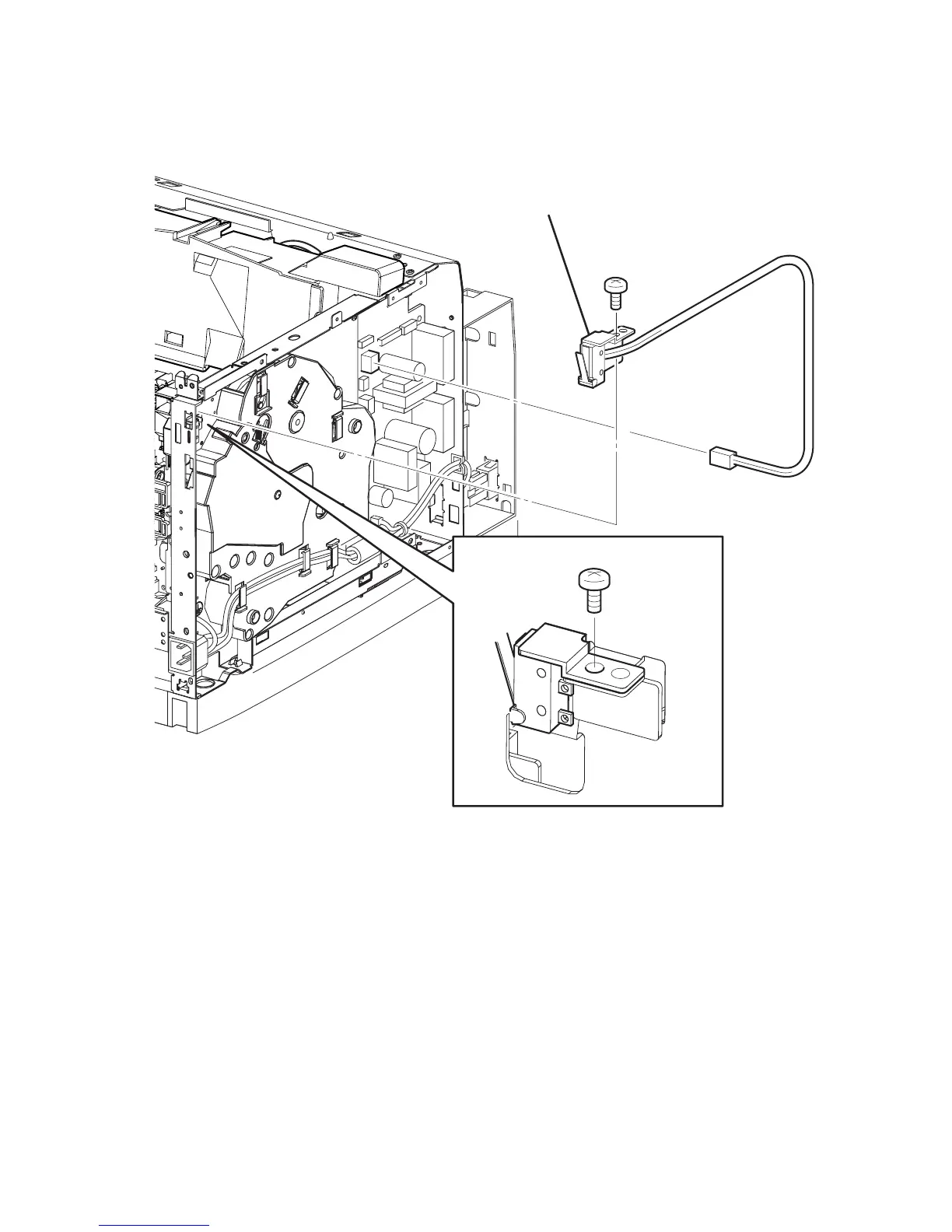

1. Rear Cover Switch
s4500-146
1
