8-10 Phaser 4500 Service Manual
Top Cover Assembly, Front Panel
(PL1.1.7) (PL1.1.1)
Note
The Front Panel can be removed without removing the Top Cover Assembly by
prying up carefully on the right edge of the Front Panel.
1. Remove the Print Cartridge.
2. Remove the Paper Exit Cover (page 8-4) or Stacker, if installed (page 8-132).
3. Remove the Right Cover (page 8-7).
4. Remove the Left Cover (page 8-9).

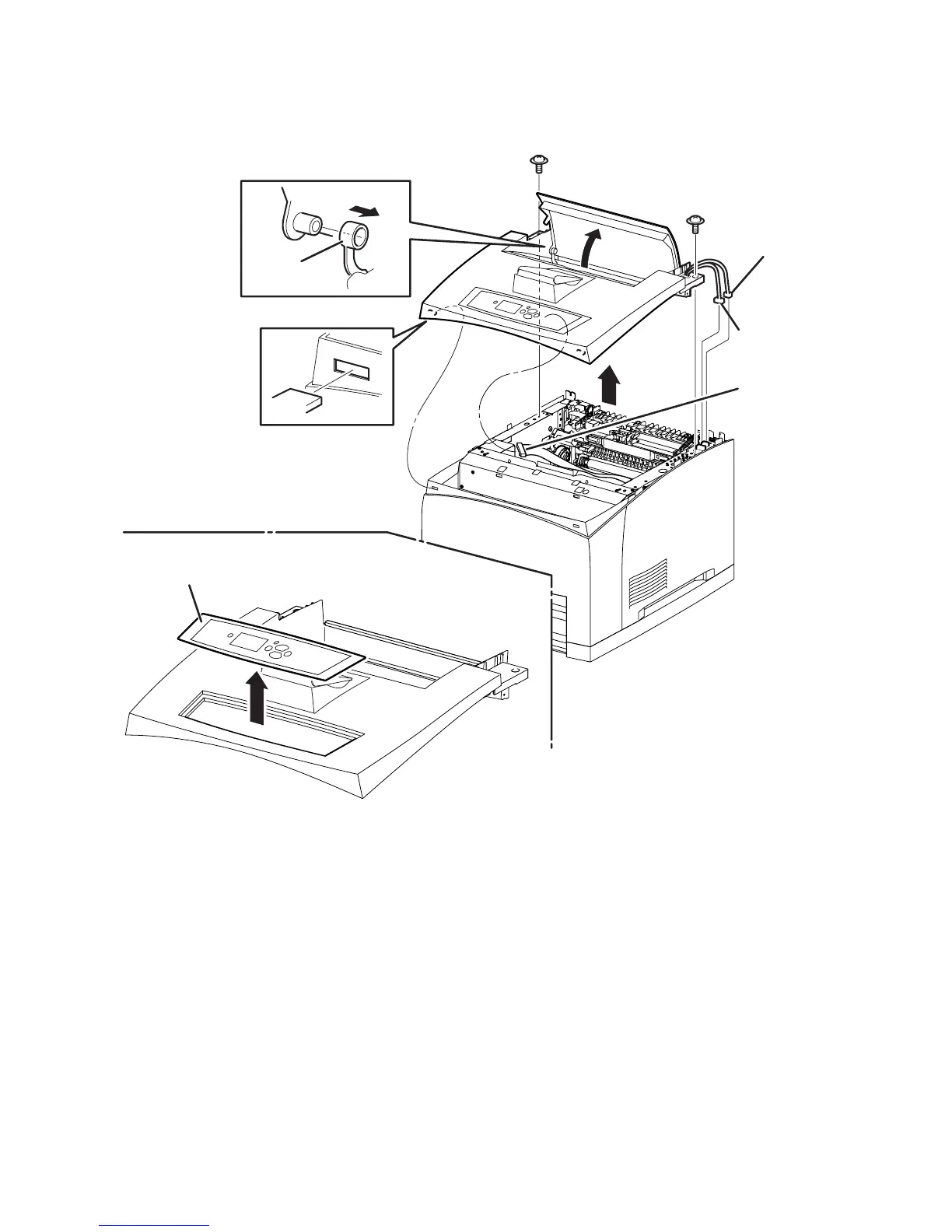

1. Link Lever 2. Front Panel
s4500-060
1
2
P/J411
P/J144
810
To Next Page
