Skew
Actions and Questions Yes No
1. Enter Service Diagnostics, select Engine Test Print, then
press the OK button.
2. Scroll to Print Test Pattern, then press the OK button.

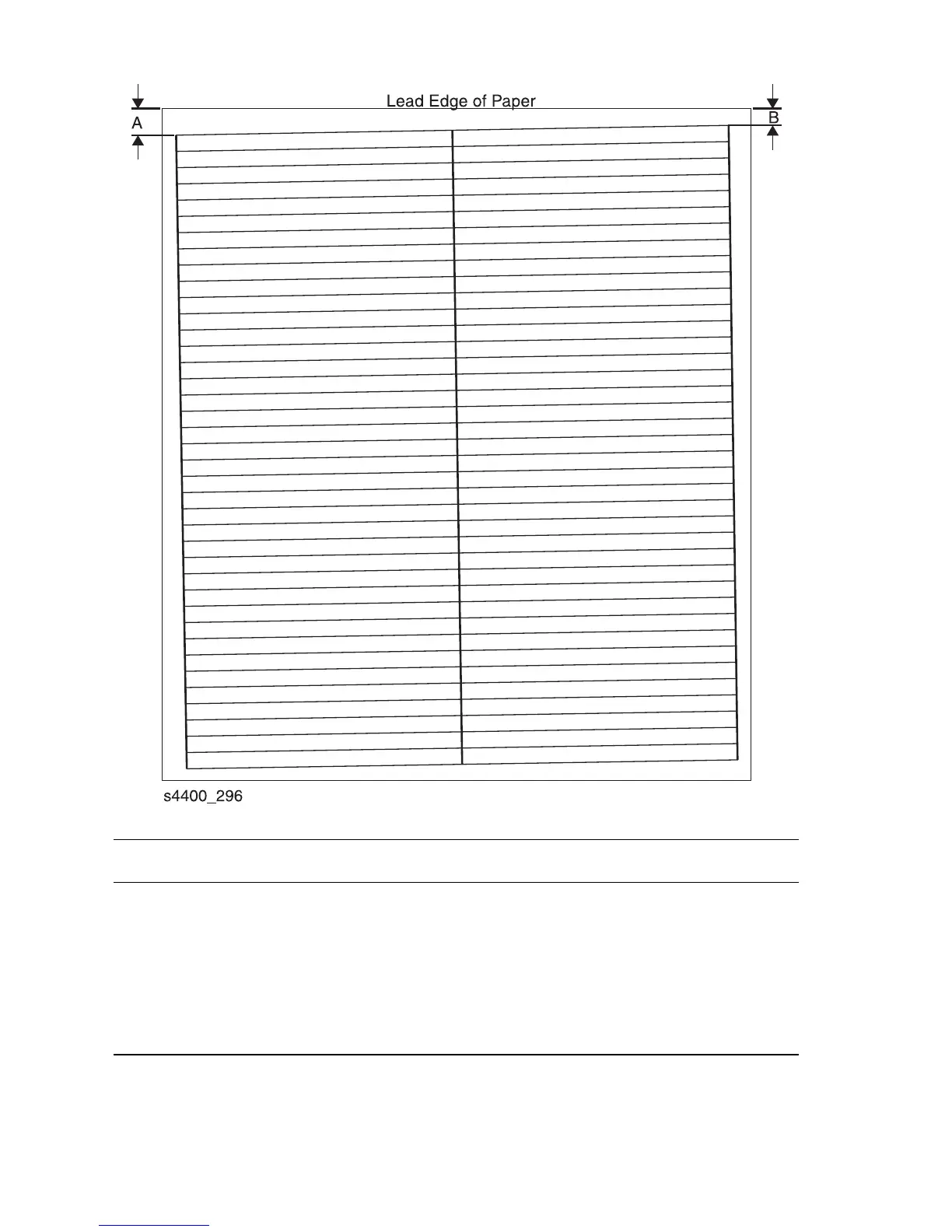

3. Measure the dimensions ‘A’ and ‘B’ on two consecutive
test patterns.
Is the difference between ‘A’ and ‘B’ 1.2 mm or less?
The printed
test patterns
meet the
Skew
specifications.
Go to “Skips
and Smears”
on page 5-49.
Go to
“Skewed
Image” on
page 5-44.
