Nudger Roller, Feed Roller
(PL20.2.11) (PL20.2.12)
1. Release the hook that retains the Nudger Roller and pull the roller off the Nudger
Shaft.
2. Release the hook that retains the Feed Roller and pull the roller off the Feed
Shaft.
Replacement Note:
■ The same roller (same part number) is used for the Feed Roller and Nudger
Roller Assemblies.

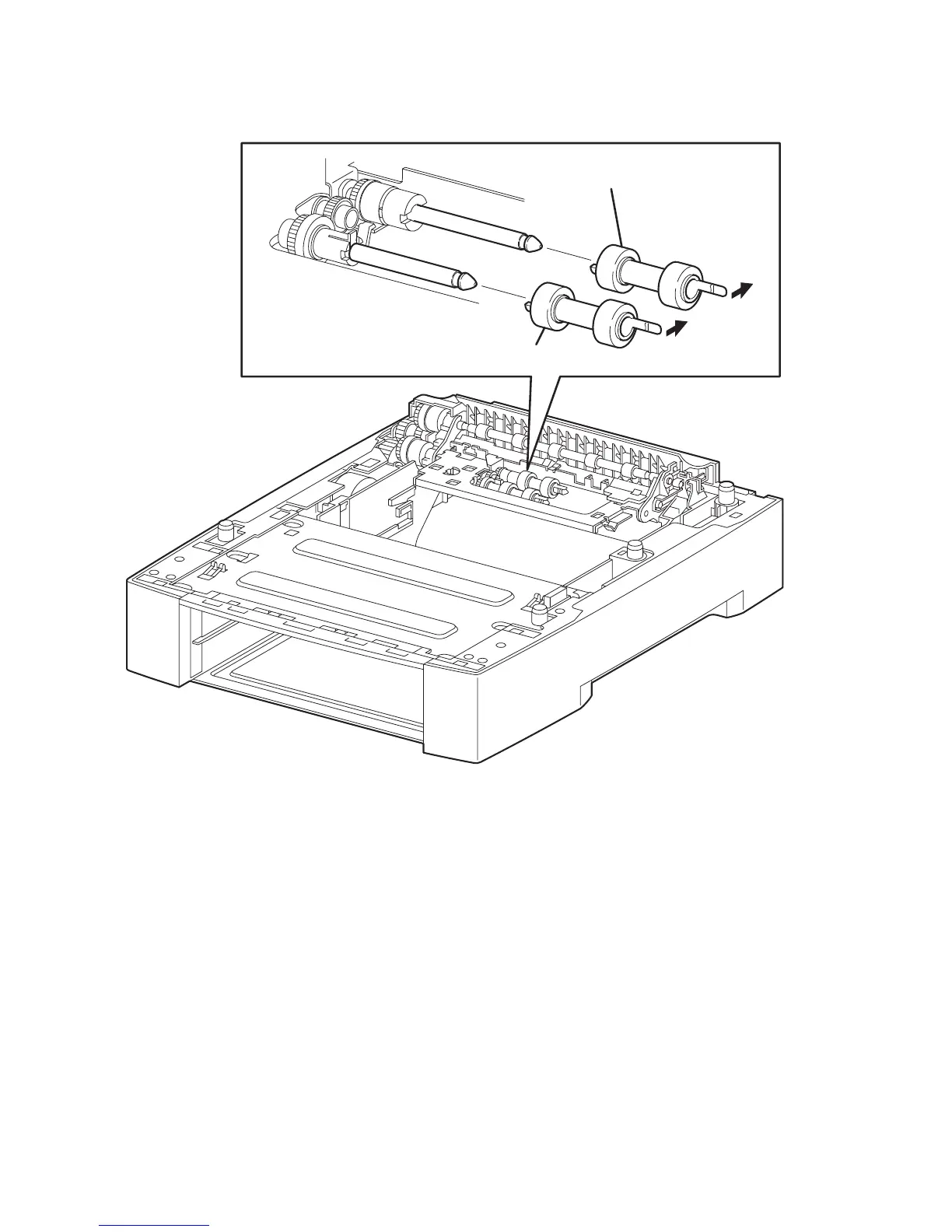

1. Feed Roller 2. Nudger Roller
s4500-161
1
2
