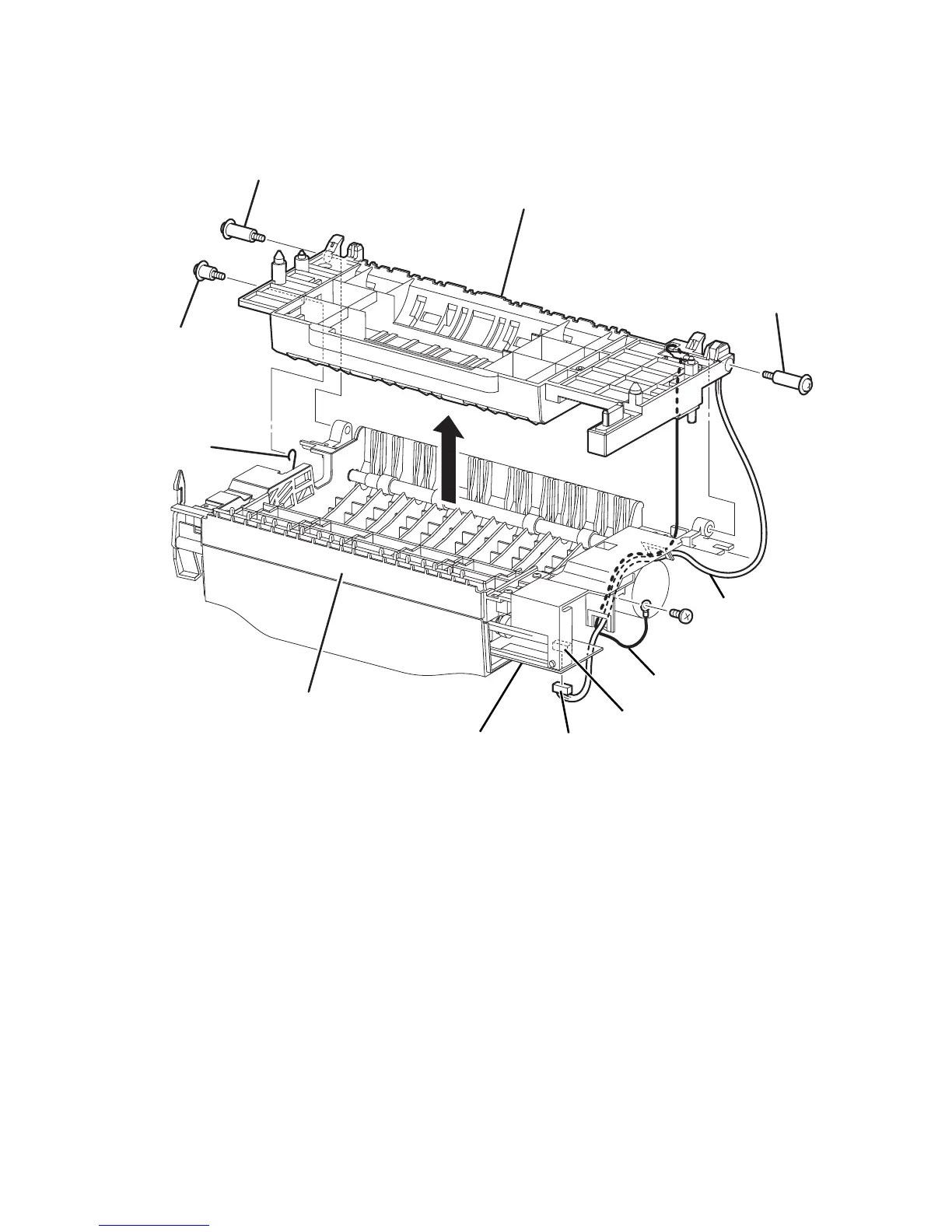

FRU Disassembly 8-121
Duplex Unit Lower Housing
(PL21.1.6)
1. Duplex Unit Harness 5. Hinge Screw
2. Duplex Unit Ground Wire 6. Damper Spring
3. Duplex Unit PWBA 7. Duplex Unit Lower Housing
4. Shoulder Screw 8. Duplex Unit Housing Cover
s4500-186
4
5
7
8
3
5
1
2
P50
J50
6
