8-132 Phaser 4500 Service Manual
Options: Stacker
Stacker Removal
1. Loosen the two thumb screws that secure the Stacker to the printer.
2. Tilt the Stacker forward to release connector P/J3070 and the front hooks, then
lift the Stacker off the printer.

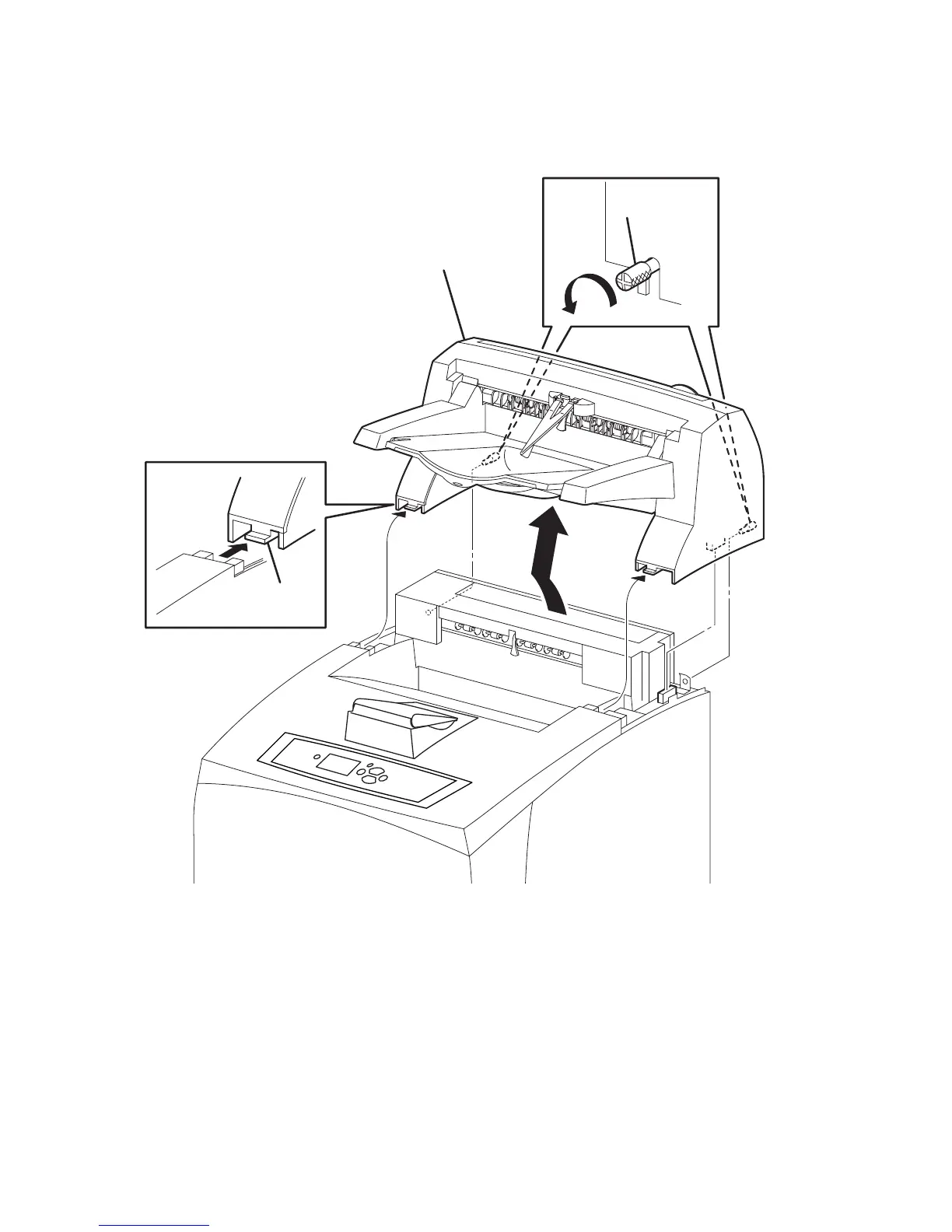

1. Thumbscrew 3. Hook
2. Stacker
s4500-198
1
2
3
