Xerox Phaser 4500 Service Manual

8-154 Phaser 4500 Service Manual
Stacker Motor Assembly
(PL23.1.6)
1. Remove the Stacker Rear Cover (page 8-133).
2. Remove the Stacker Cover (page 8-134).
3. Remove the Stacker Front Cover (page 8-137).
4. Disconnect the connector of the Stacker Motor Assembly from the Stacker Motor
Harness Assembly.
5. Remove the two screws (silver machine, 8 mm) that attach the Stacker Motor
Assembly, and remove the Stacker Motor Assembly.

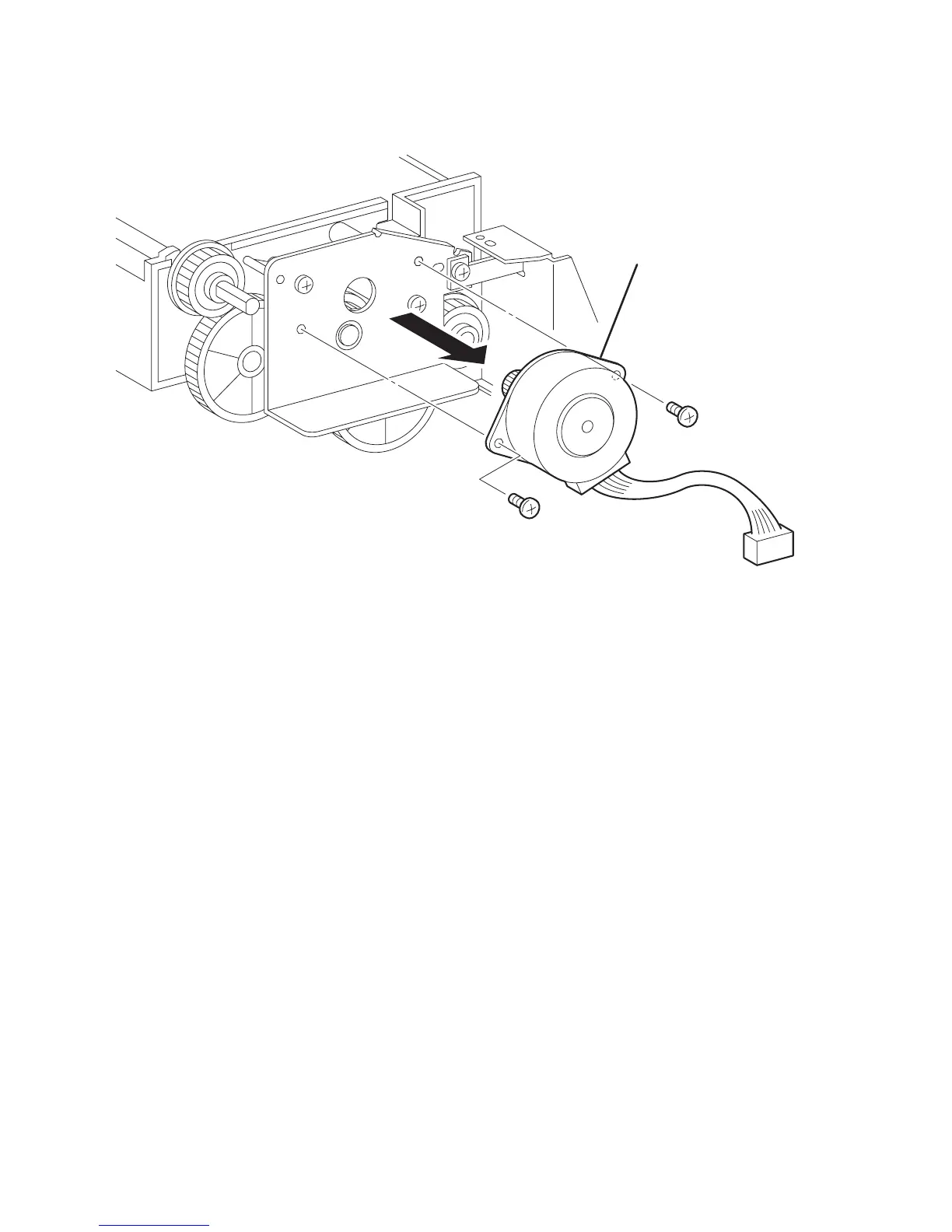

1. Stacker Motor Assembly
s4500-217
1
