8-34 Phaser 4500 Service Manual

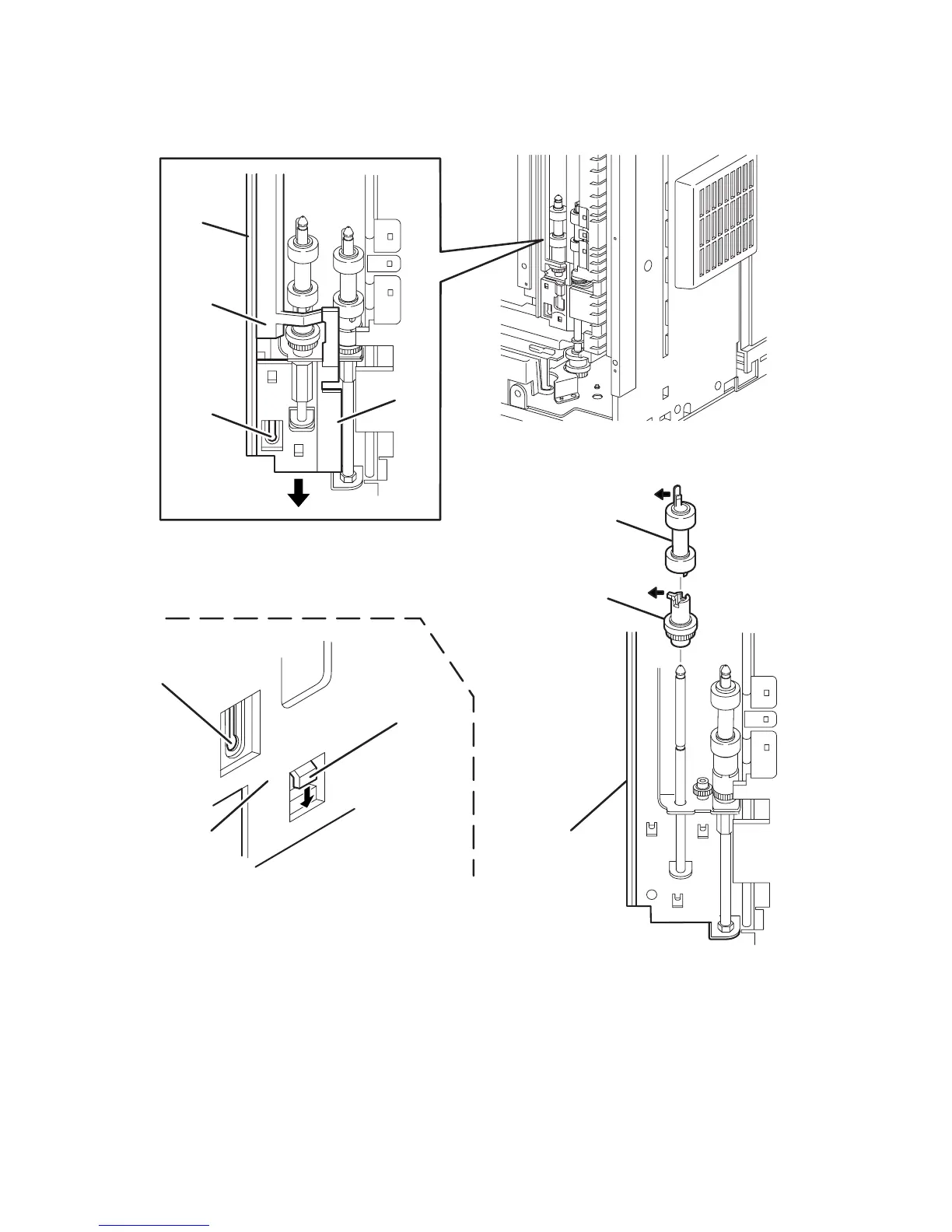

Nudger Gear
(PL7.1.18)
1. Nudger Support 5. Nudger Roller
2. No Paper Actuator 6. Pick Gear
3. Boss (Lift Tab) 7. Metal pivot plate
4. Left Holder 8. Hook
s4500-105
1
2
3
4
5
6
7
8
7
3
