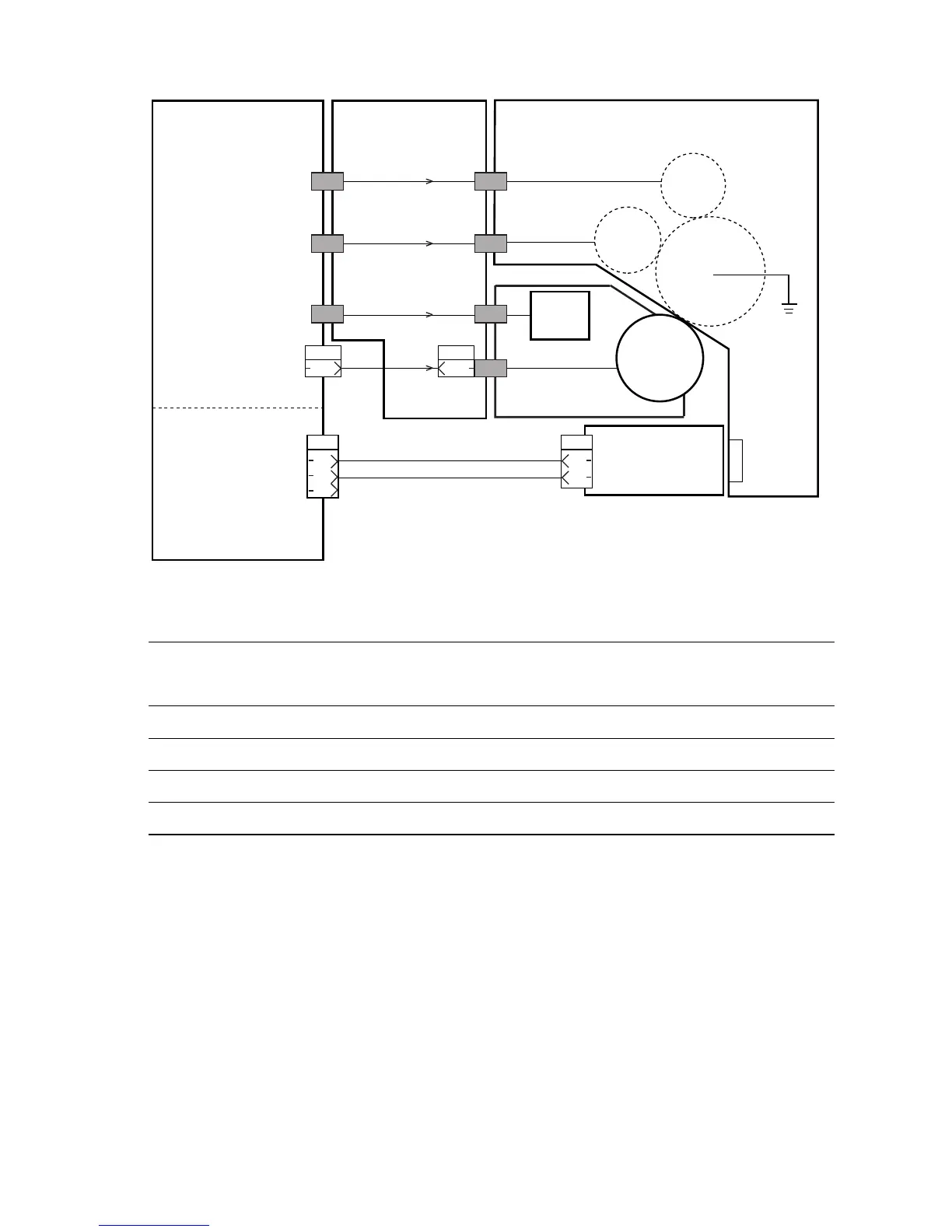

Wiring Diagrams 10-21
Print Cartridge, Transfer Roller Assembly
Signal line
name
Description
DB Output from HVPS to Magnet Roller (Development bias)
CR Output from HVPS to BCR
DTS Output from HVPS to Detack Saw
TR Output from HVPS to Transfer Roller
PRINT CARTRIDGER. PRINT CARTRIDGE
GUIDE
HVPS/
ENGINE LOGIC
PWBA
Drum
Detack
Saw
TRANSFER ROLLER
ASSEMBLY
Mag Roller
BCR
CRUM
ANTENNA
DB
CR
DTS
TR
ANT IN
ANT OUT
ANTENNA HARNESS
Transfer
Roller
HVPS
ENGINE LOGIC
P/J 31
P/J150
1
2
P/J15
2
3
1
1
P/J 310
1
s4500-237
CRUM
To Next Page
