Xerox Phaser 4500 Service Manual

2-6 Phaser 4500 Service Manual

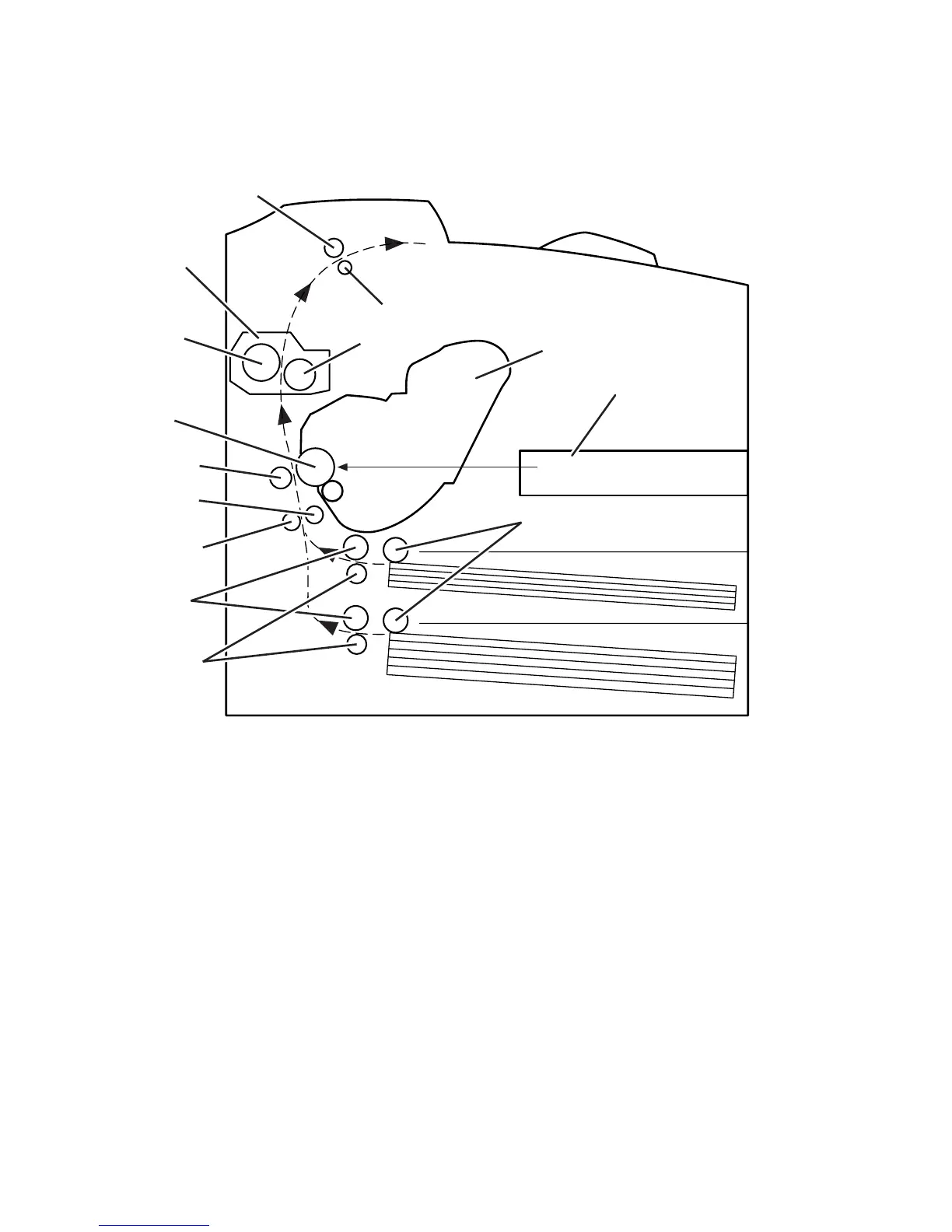

Layout of Paper Transport Path
This cross section of the Phaser 4500 printer shows the main components directly
associated with the paper path and transport in the engine only.
1. Exit Roller 8. Rubber Registration Roller
2. Exit Pinch Roller 9. Metal Registration Roller
3. Fuser Assembly 10.Feed Roller Assemblies
4. Pressure Roller 11.Retard Roller Assemblies
5. Heat Roller 12.Nudger Roller Assemblies
6. Drum 13.Print Cartridge
7. Transfer Roller Assembly 14.Laser Assembly
s4500-018
1
2
5
3
4
6
7
8
9
10
11
12
13
14
