8-120 Phaser 4500 Service Manual
Upper Assembly Housing
(PL21.1.1)
1. Remove the four screws (gold tapping, 8 mm) that attach the Upper Assembly
Housing to the Duplex Unit.
2. Remove the Upper Assembly Housing from the Duplex Unit Housing Cover.

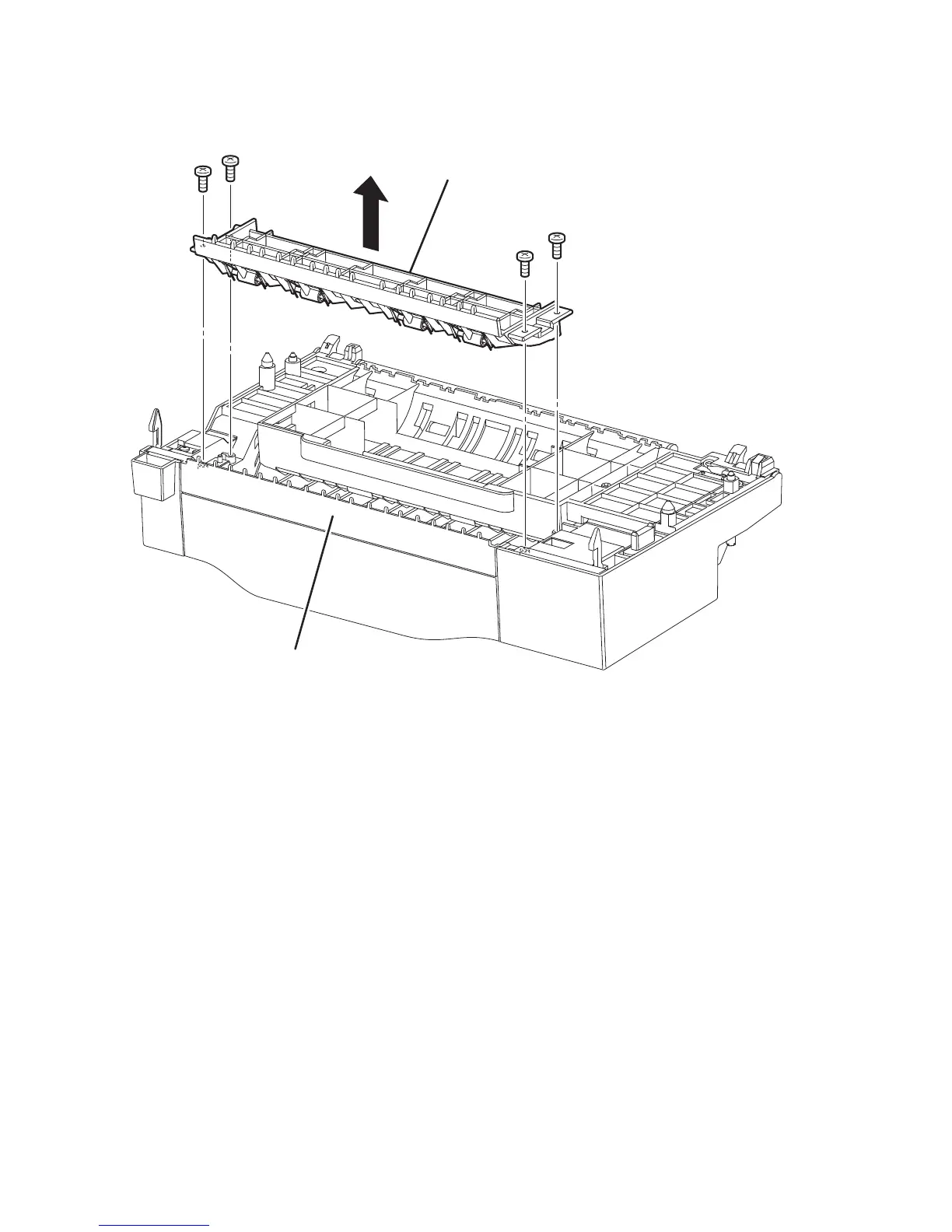

1. Upper Assembly Housing 2. Duplex Unit Housing Cover
s4500-185
1
2
