Xerox Phaser 4500 Service Manual

8-138 Phaser 4500 Service Manual
Stacker Tray Assembly
(PL23.1.40)
1. Remove the Stacker Rear Cover (page 8-133).
2. Remove the Stacker Cover (page 8-134).
3. Remove the four screws (gold tapping, 8 mm) that attach the Stacker Tray
Assembly to the Stacker Cover, and remove the Stacker Tray Assembly from the
Stacker Cover.

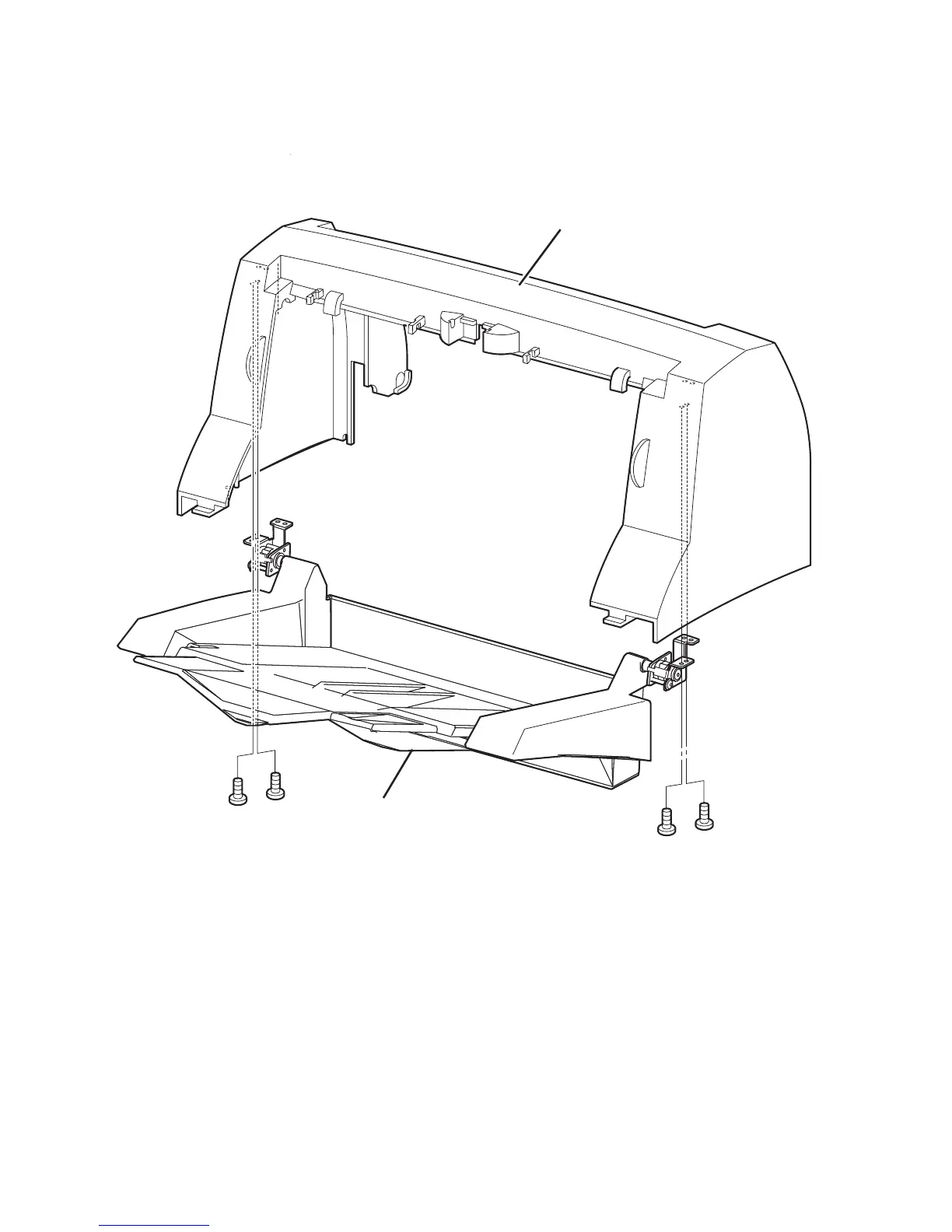

1. Stacker Tray Assembly 2. Stacker Cover
s4500-200
1
2
