8-118 Phaser 4500 Service Manual
Right Cover
(PL21.1.41)
1. Remove the two screws (gold tapping, 8 mm) that attach the Right Cover.
2. Remove the Right Cover from the Duplex Unit Housing Cover.

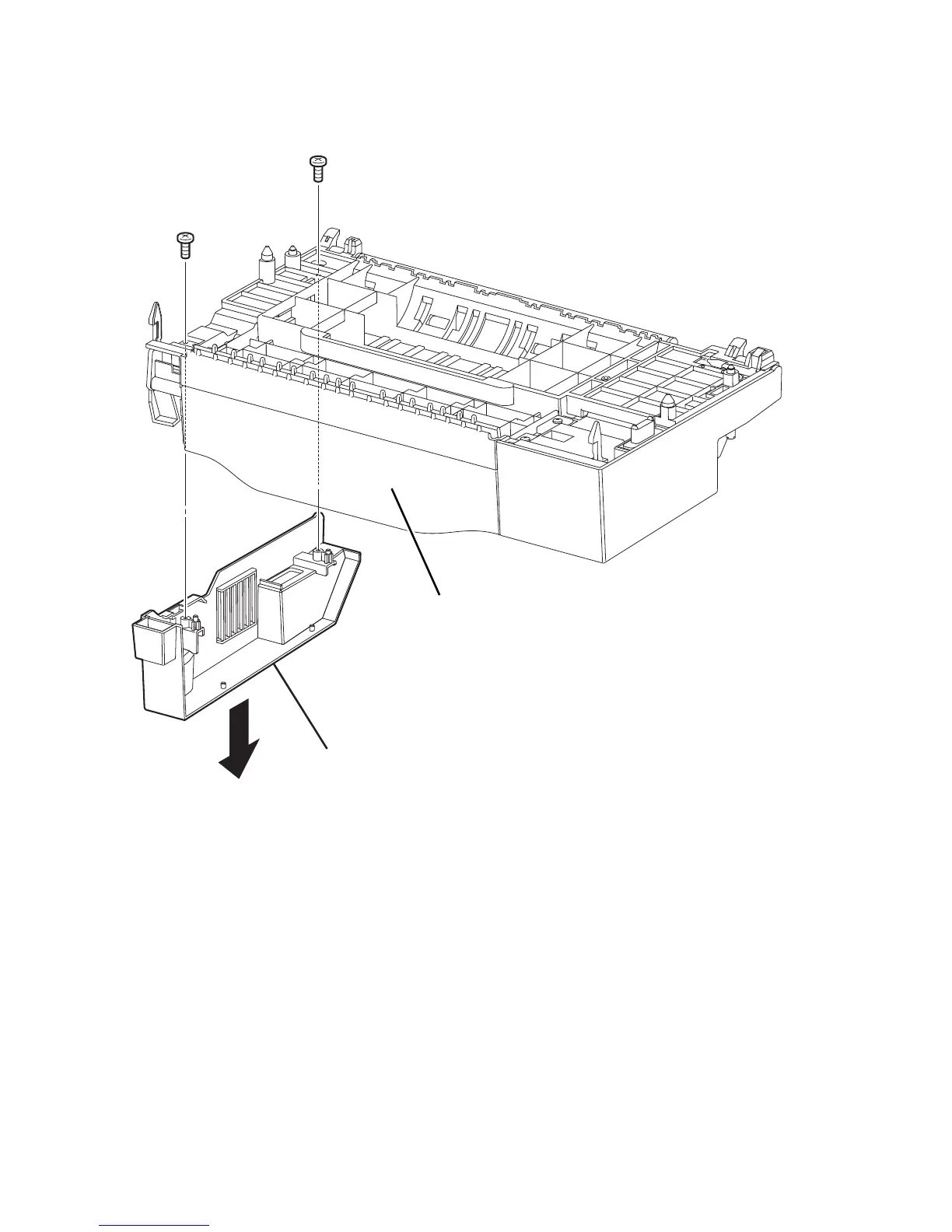

1. Right Cover 2. Duplex Unit Housing Cover
s4500-194
