8-146 Phaser 4500 Service Manual

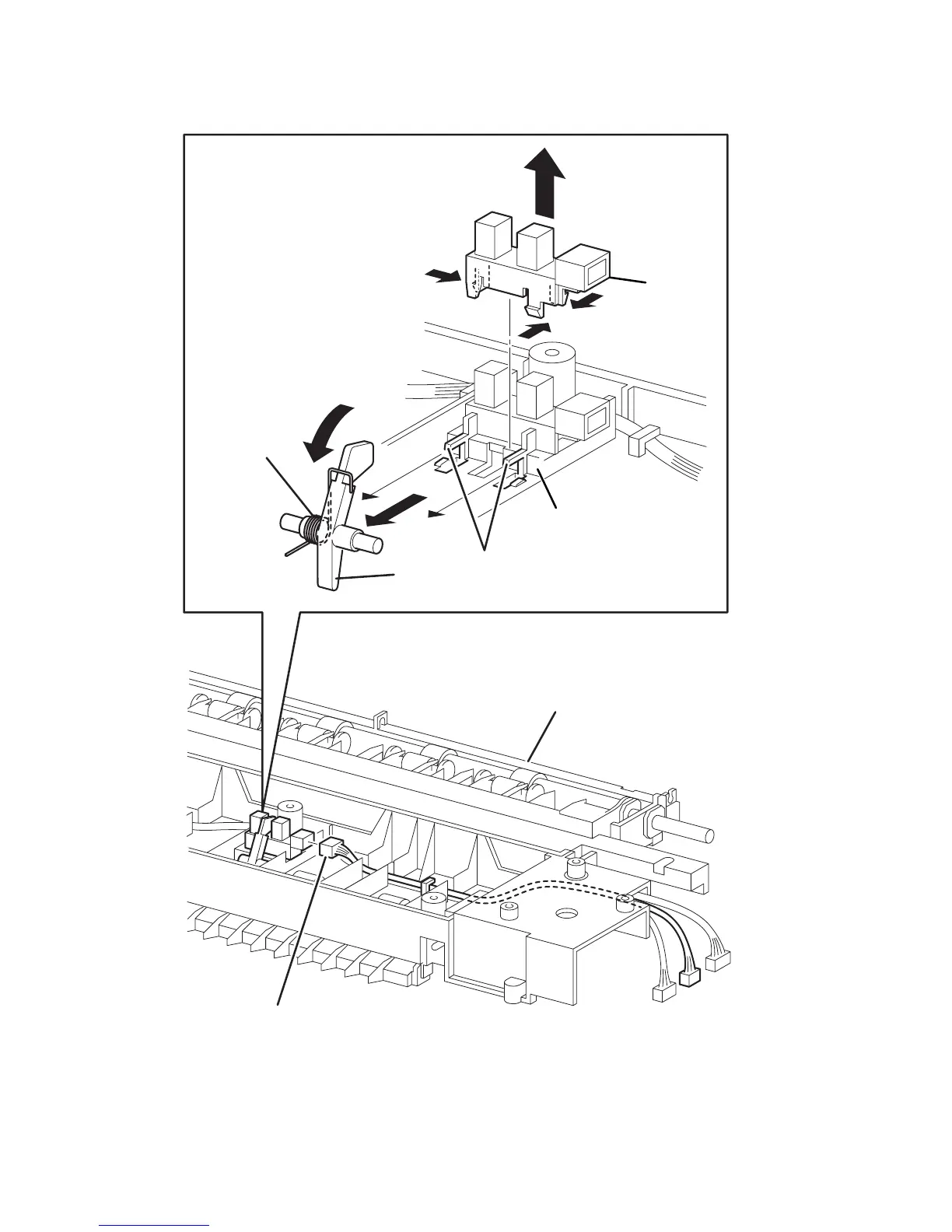

Stacker Sensor and Actuator
(PL23.1.30)
1. Stacker Actuator 4. Stacker Housing
2. Pivot Hooks 5. Actuator Spring
3. Stacker Sensor
s4500-211
J730
4
2
1
5
4
3
