Xerox Phaser 4500 Service Manual

FRU Disassembly 8-33
Nudger One-way Clutch
(PL7.1.27)
1. Remove the Print Cartridge and leave the cover open so that the removal can be
checked visually.
2. Remove the Tray 1 and Tray 2 Paper Cassettes.
3. Lift up the 150-Sheet Feeder Assembly until it locks into the raised detent
position.
4. Remove the Feed Roller (page 8-32).
5. Slide the Feed One-way Clutch off the Feed Shaft.
6. Remove the E-ring retaining the Nudger One-way Clutch on the Feed Shaft.
7. Slide the Nudger One-way Clutch off the Feed Shaft.

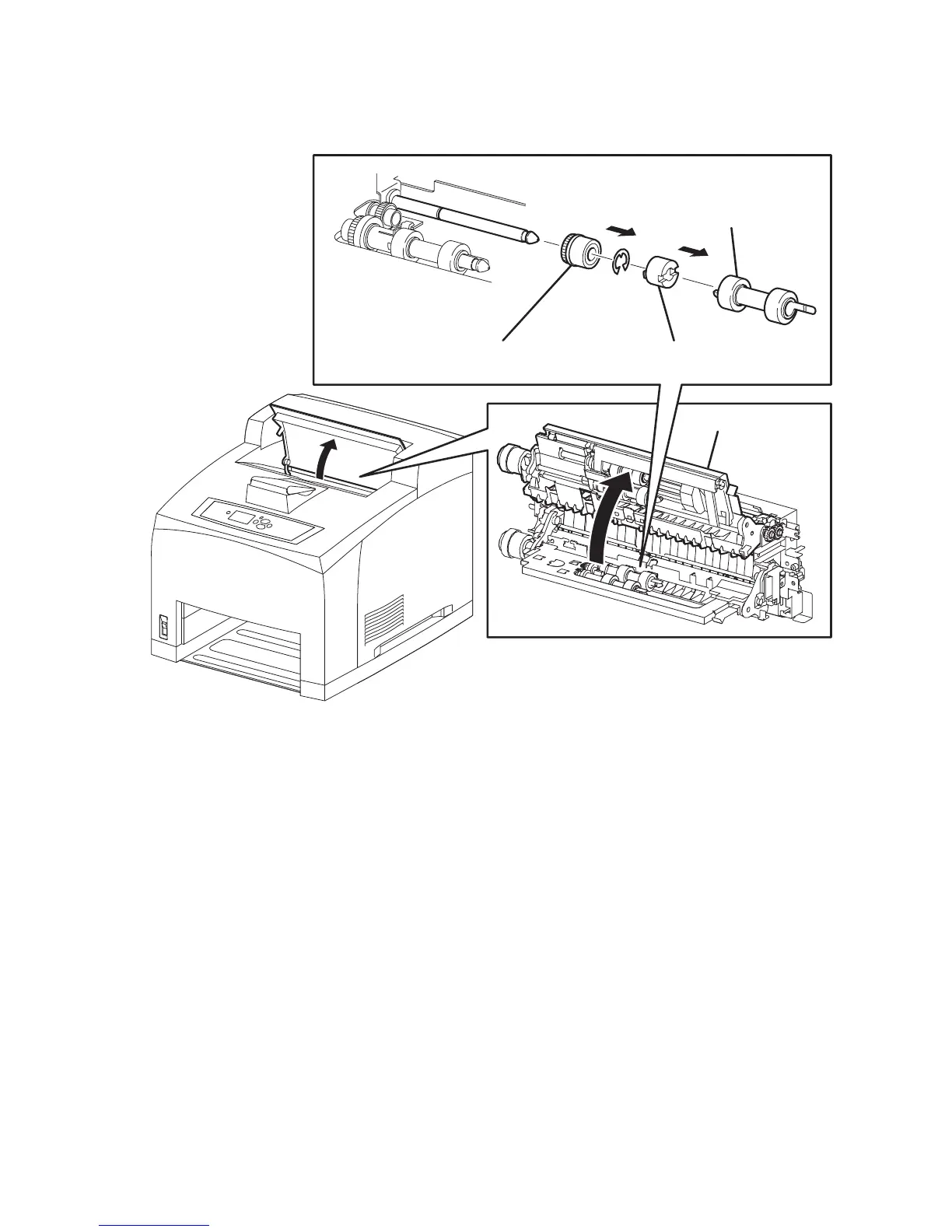

1. Nudger One-way Clutch 3. Feed Roller
2. Feed One-way Clutch 4. 150-Sheet Feeder Assembly
s4500-104
1
3
2
4
