Xerox Phaser 4500 Service Manual

FRU Disassembly 8-63
Upper Exit Chute, Lower Exit Chute
(PL10.1.4) (PL10.1.21)
1. Remove the Paper Exit Assembly (page 8-61).
2. Remove the two screws (gold tapping, 8 mm) that attach the Upper Exit Chute to
the Lower Exit Chute.
3. Separate the Upper Exit Chute and Lower Exit Chute.
Replacement Note:
Be sure that the Stacker Gate Link is pivoted to the front of the Upper Exit Chute
when reassembling the Paper Exit Assembly. Following assembly, verify that pressing
the link actuates the Stacker Gate.

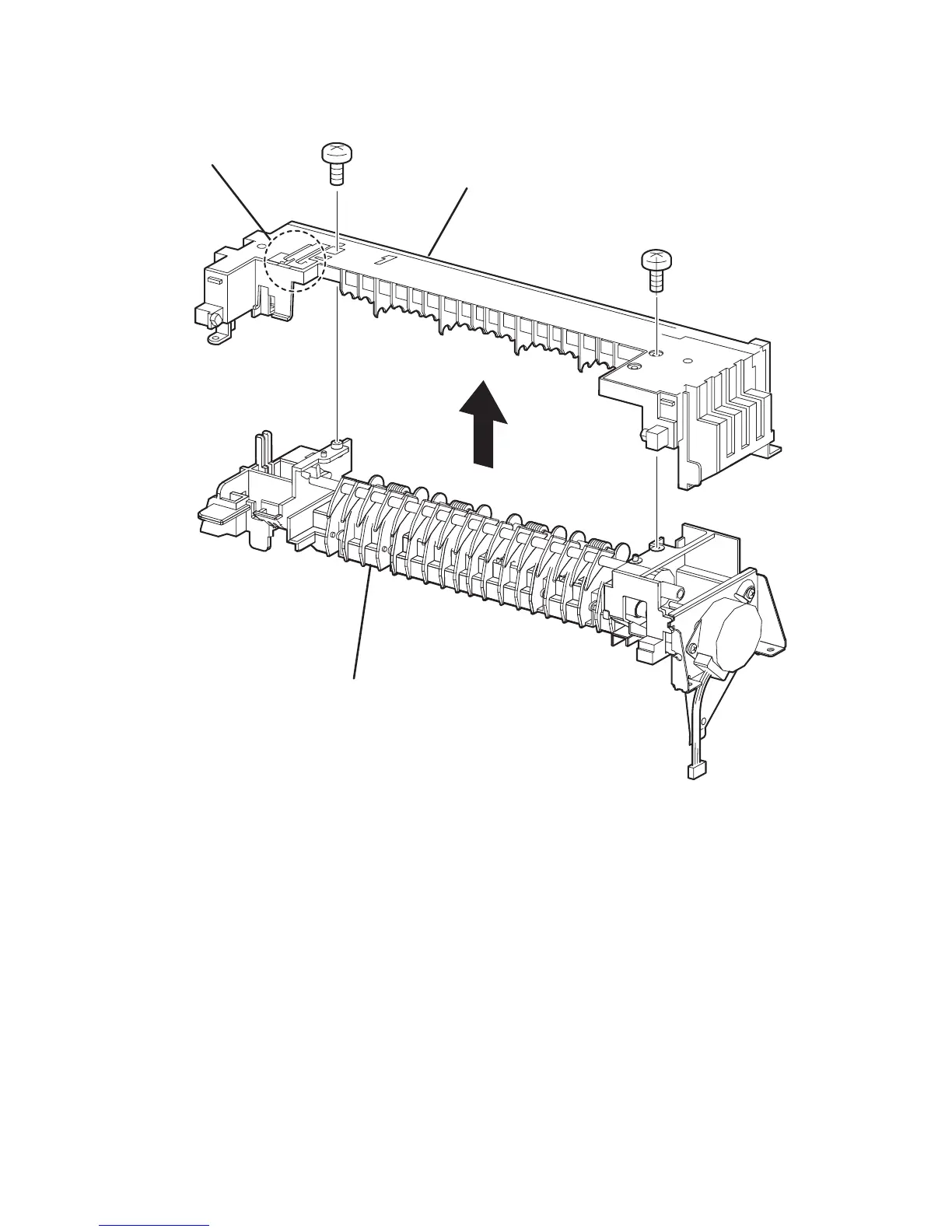

1. Stacker Gate Link 3. Lower Exit Chute
2. Upper Exit Chute
s4500-129
1
2
3
