8-80 Phaser 4500 Service Manual

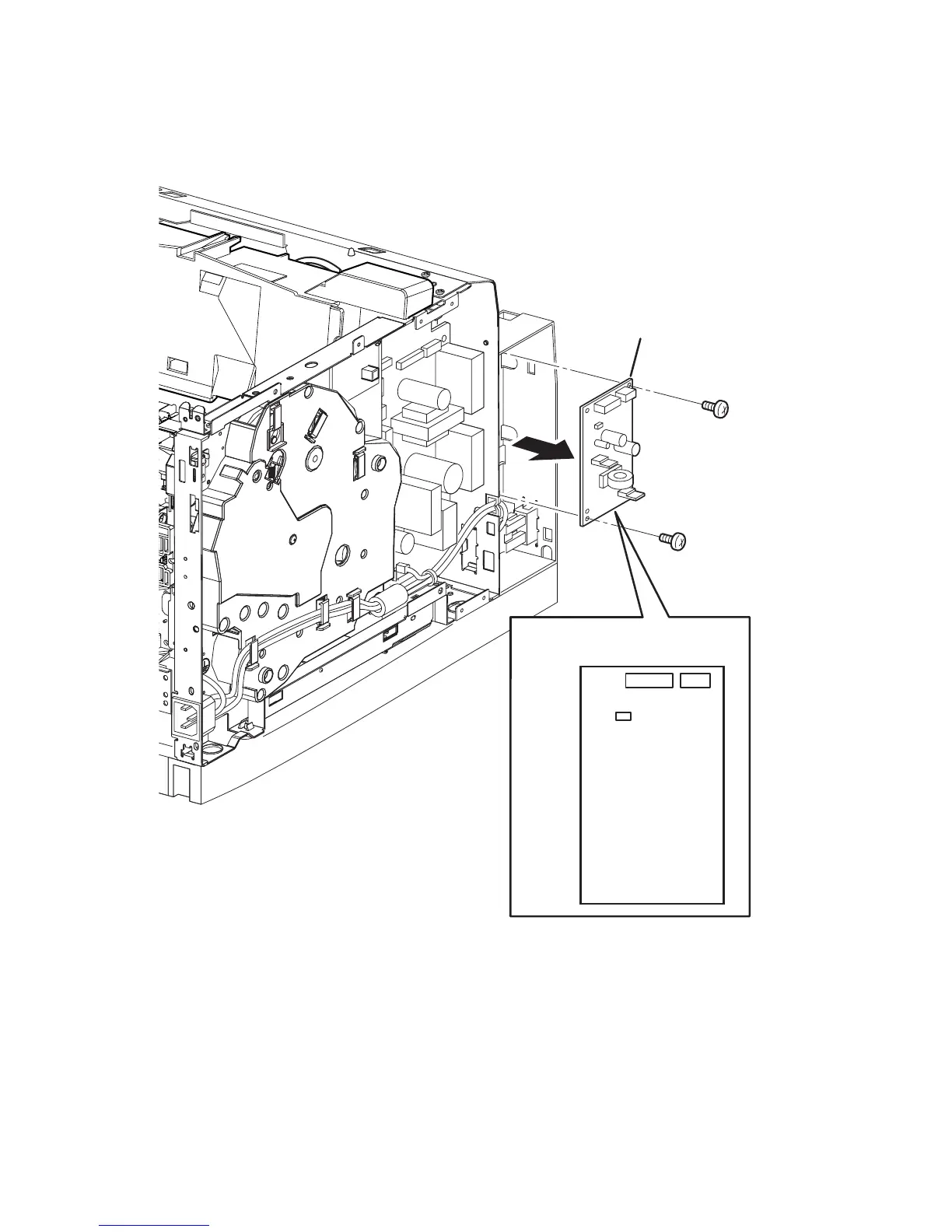

DC-DC Converter
(PL 12.01.AA)
1. Remove the Front Cover (page 8-12).
2. Unplug the cable connectors at P401, P402, and P403.
3. Remove the two screws (silver machine, 6 mm) and lift out the board.
1. DC-DC Converter
s4500-262
P402
P401
P403
1
