Xerox Phaser 4500 Service Manual

FRU Disassembly 8-137
Stacker Front Cover
(PL23.1.45)
1. Remove the Stacker Rear Cover (page 8-133).
2. Remove the Stacker Cover (page 8-134).
3. Remove the three screws (gold tapping, 8 mm) that attach the Stacker Front
Cover to the Stacker.
4. Release the hooks on both sides of the Stacker Front Cover, and remove the
Stacker Front Cover.
Note
When removing the Stacker Front Cover, the Cam Gear comes off. Be
careful not to lose it.

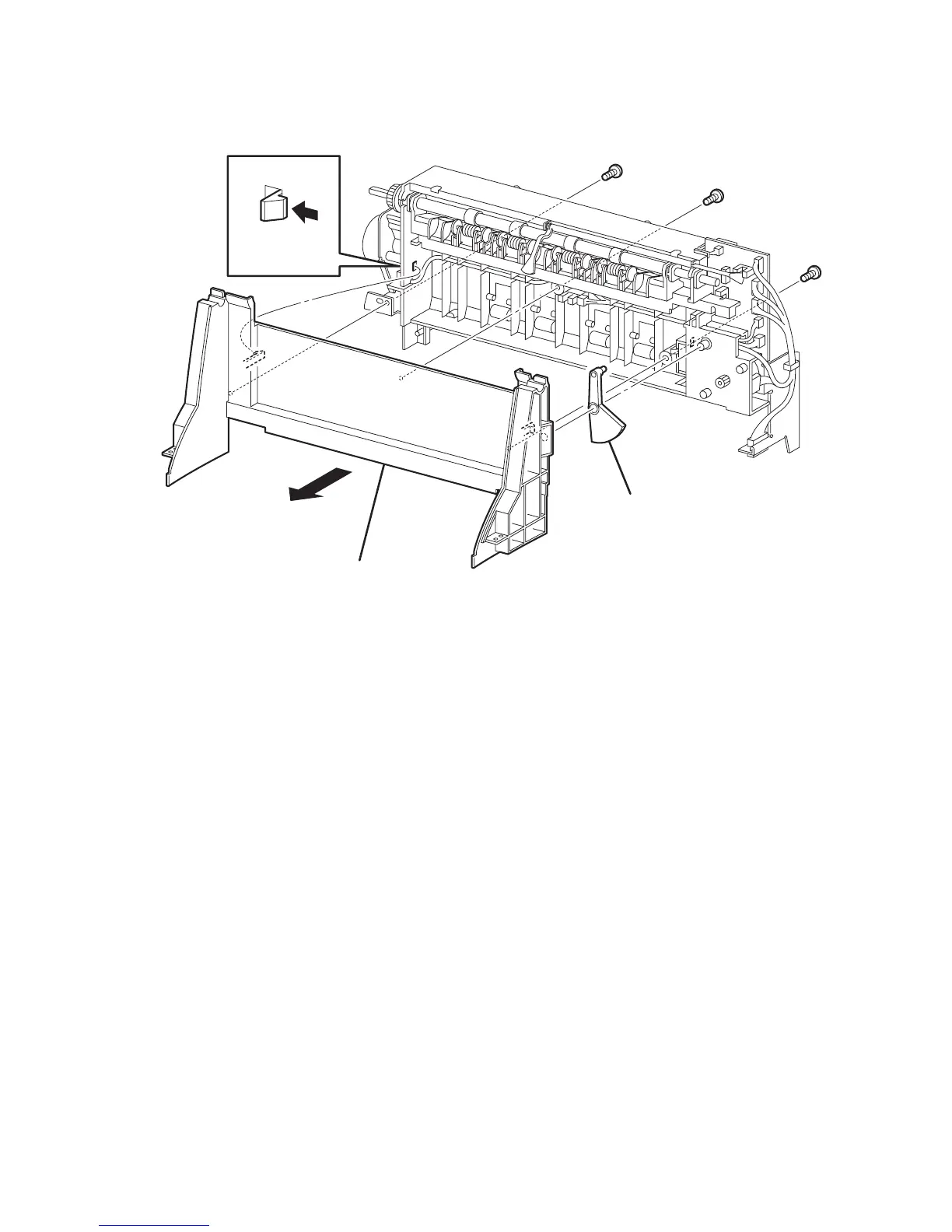

1. Front Cover 2. Cam Gear
s4500-204
1
2
