Xerox Phaser 4500 Service Manual

FRU Disassembly 8-89
HVPS/Engine Logic Board
(PL12.1.19)
1. Remove the Right Cover (page 8-7).
2. Remove the HVPS Shield Plate (page 8-88).

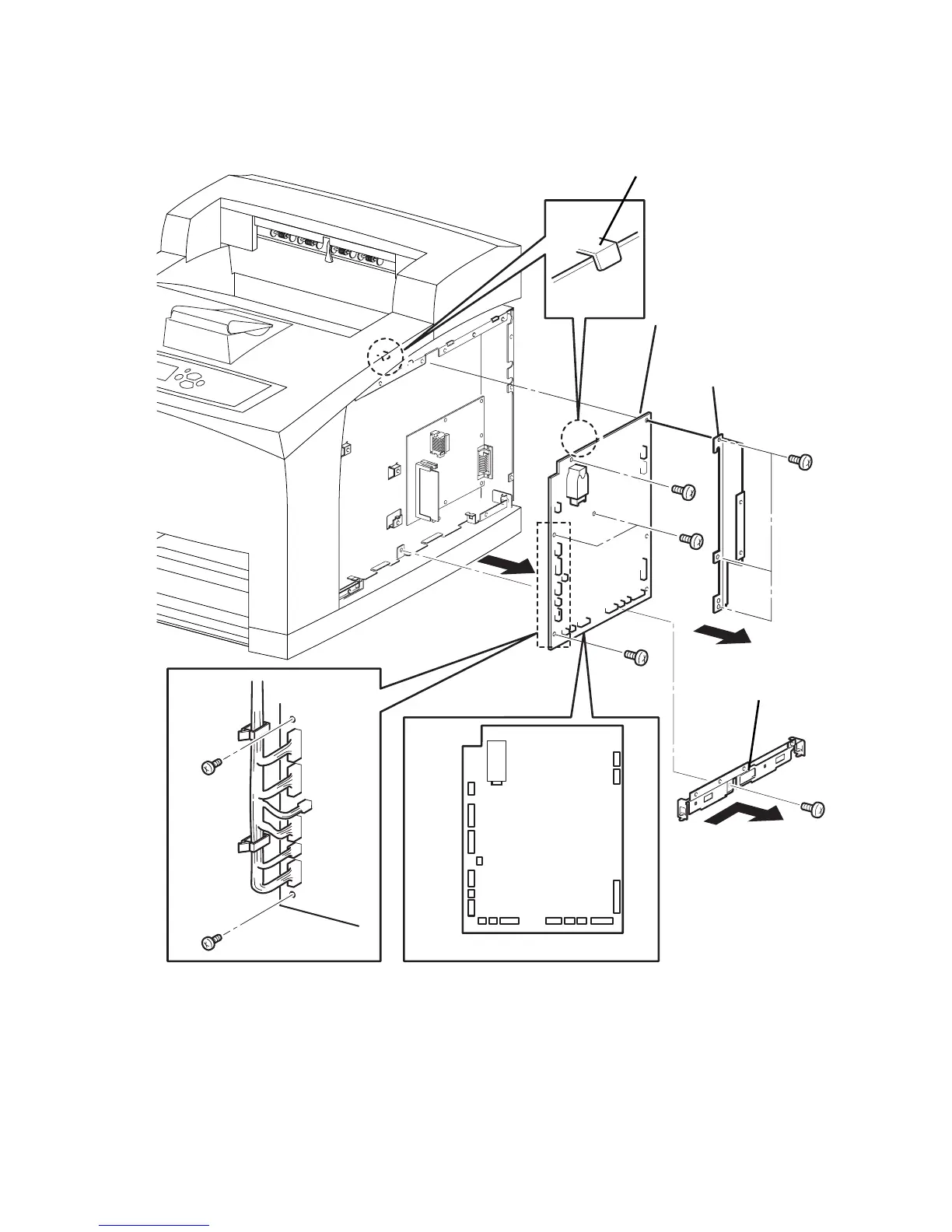

1. Hook 3. HVPS Shield Bracket
2. HVPS/Engine Logic Board 4. Right Handle Bracket
s4500-151
10
11
27
13
14
15
18
171620 19222624
28
30
29
31
P/J
4
1
2
3
