KTM 300 EXC TPI 2019 Repair Manual

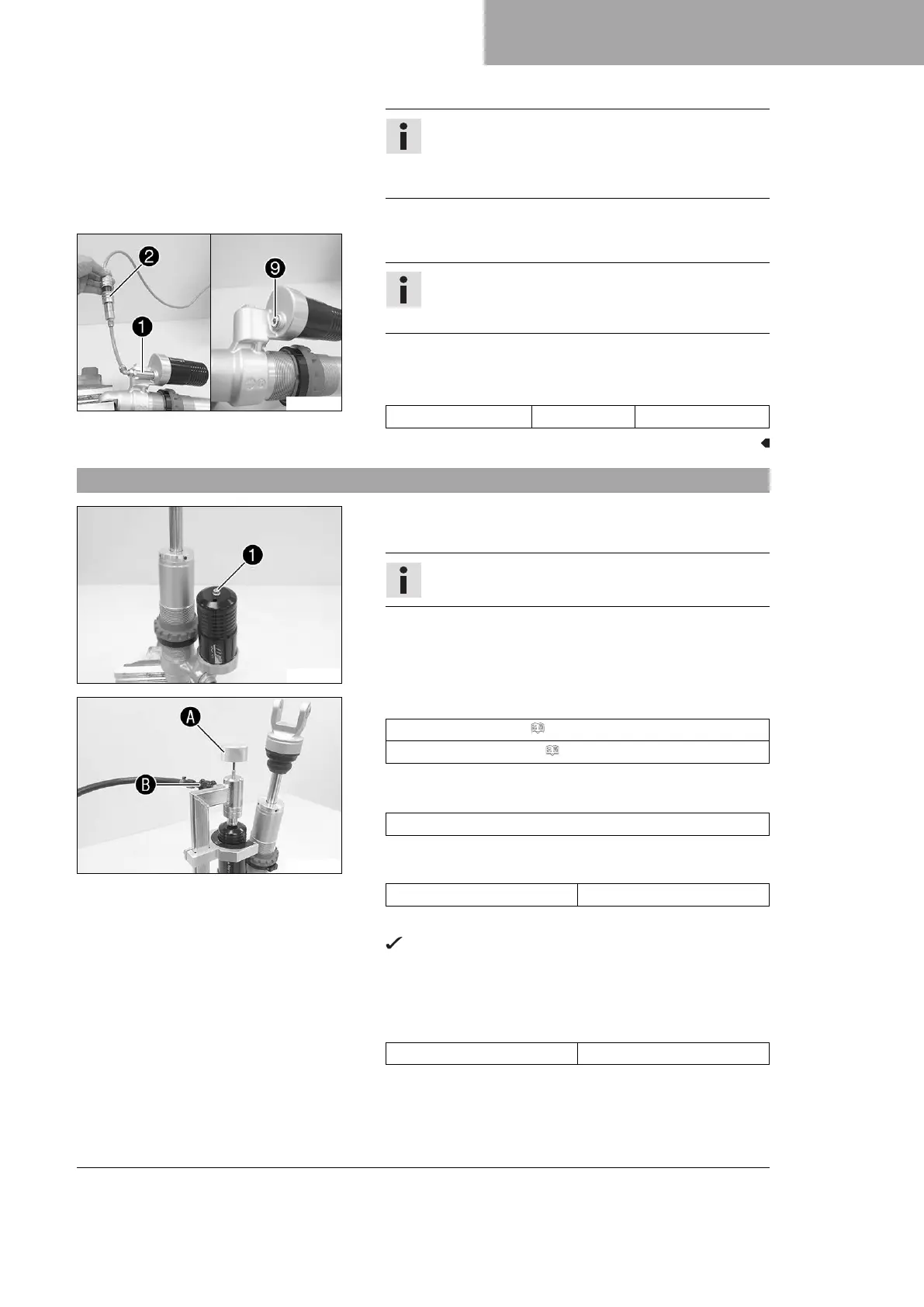

SHOCK ABSORBER, SWINGARM 9
99
Info
The floating piston must be positioned at exactly this
point when the rod is fully extended; otherwise, damage
will occur during compression of the shock absorber.
– Remove the special tool.
B04503-10
–
Remove adapter
1
from connector
2
of the vacuum pump.
Info
Hold the damper so that the filling port is at the high-
est point.
– Remove the adapter.
–
Mount screw
9
with the O-ring and tighten.
Guideline
Filling port screw M10x1 14 Nm (10.3 lbf ft)
9.24 Filling damper with nitrogen
B04465-10
–
Mount screw
1
with the O-ring and screw it in approx. 2 full
turns, but do not tighten it fully yet.
Info
The piston rod is fully extended.
B05327-10
– Fix the special tool in the vise.
Filling tool (T170S1) ( p. 376)
Filling adapter (T1565) ( p. 376)
– Connect the special tool to the pressure regulator of the filling
cylinder.
Filling gas - nitrogen
– Adjust the pressure regulator.
Guideline
Gas pressure 10 bar (145 psi)
– Position the damper in the special tool.
The hexagonal part of tap handle
A
engages in the
hexagon socket of the filling port screw.
–
Open filler tap
B
.
– Fill the damper for at least 15 seconds.
Guideline
Gas pressure 10 bar (145 psi)

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
