KTM 300 EXC TPI 2019 Repair Manual

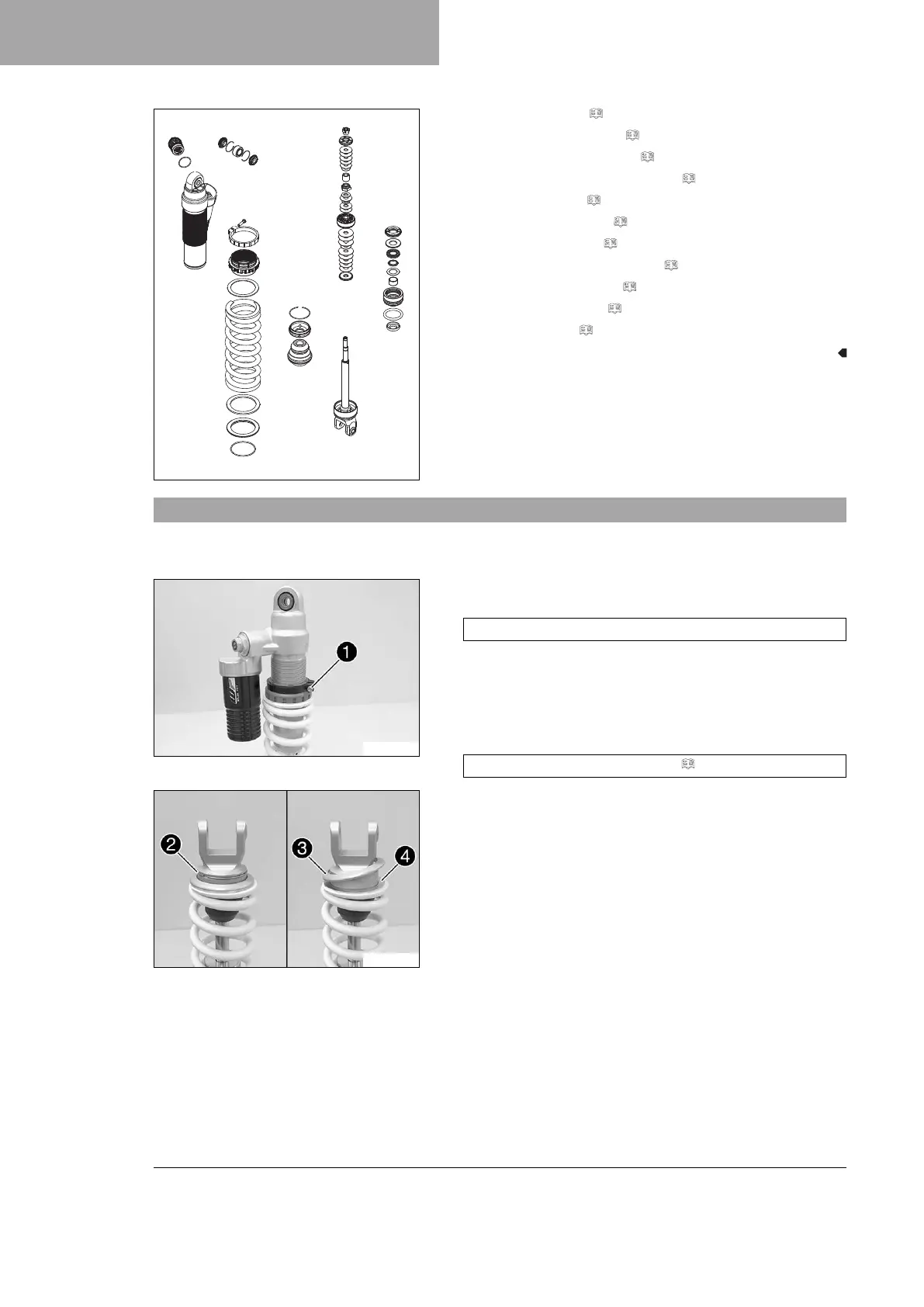

9 SHOCK ABSORBER, SWINGARM
84
B03061-01
– Remove the spring. ( p. 84)
– Disassemble the damper. ( p. 85)
– Disassemble the piston rod. ( p. 87)
– Disassemble the seal ring retainer. ( p. 86)
– Check the damper. ( p. 89)
– Remove the heim joint. ( p. 90)
– Install the heim joint. ( p. 91)
– Assemble the seal ring retainer. ( p. 91)
– Assemble the piston rod. ( p. 92)
– Assemble the damper. ( p. 94)
– Install the spring. ( p. 100)
9.12 Removing the spring
Condition
The shock absorber has been removed.
B04460-10
– Clamp the shock absorber into the vise.
Guideline
Use soft jaws.
– Measure and note the spring length while the spring is under
tension.
–
Loosen screw
1
.
– Turn the adjusting ring until the spring is completely without
tension.
Holding wrench (90129051000) ( p. 371)
B04461-10
–
Remove lock ring
2
.
–
Remove spring retainer
3
.
–
Remove washer
4
.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
