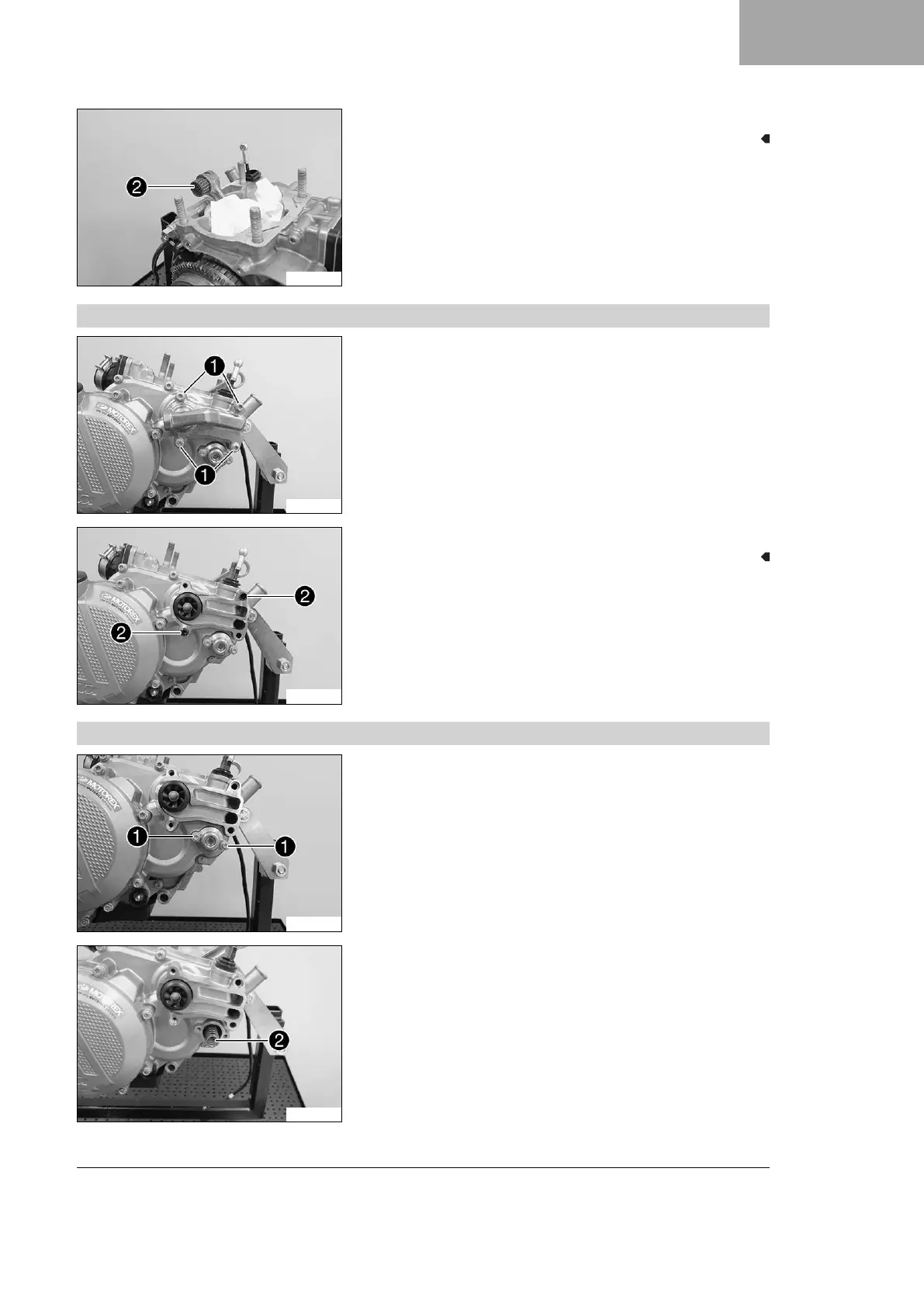

Page #211 background image

Loading...

Page #211 background image

ENGINE 18

209

D04432-10

–

Remove upper conrod bearing

2

.

18.4.12 Removing the water pump cover

D04437-10

–

Remove screws

1

.

– Take off the water pump cover.

– Remove the form ring.

R04638-10

–

Remove dowels

2

.

18.4.13 Removing the clutch cover

R04639-10

–

Remove screws

1

.

– Take off the cap.

R04640-10

–

Remove adjusting spring

2

with the auxiliary spring and

spring insert.
