KTM 300 EXC TPI 2019 Repair Manual

18 ENGINE
212
D04455-10

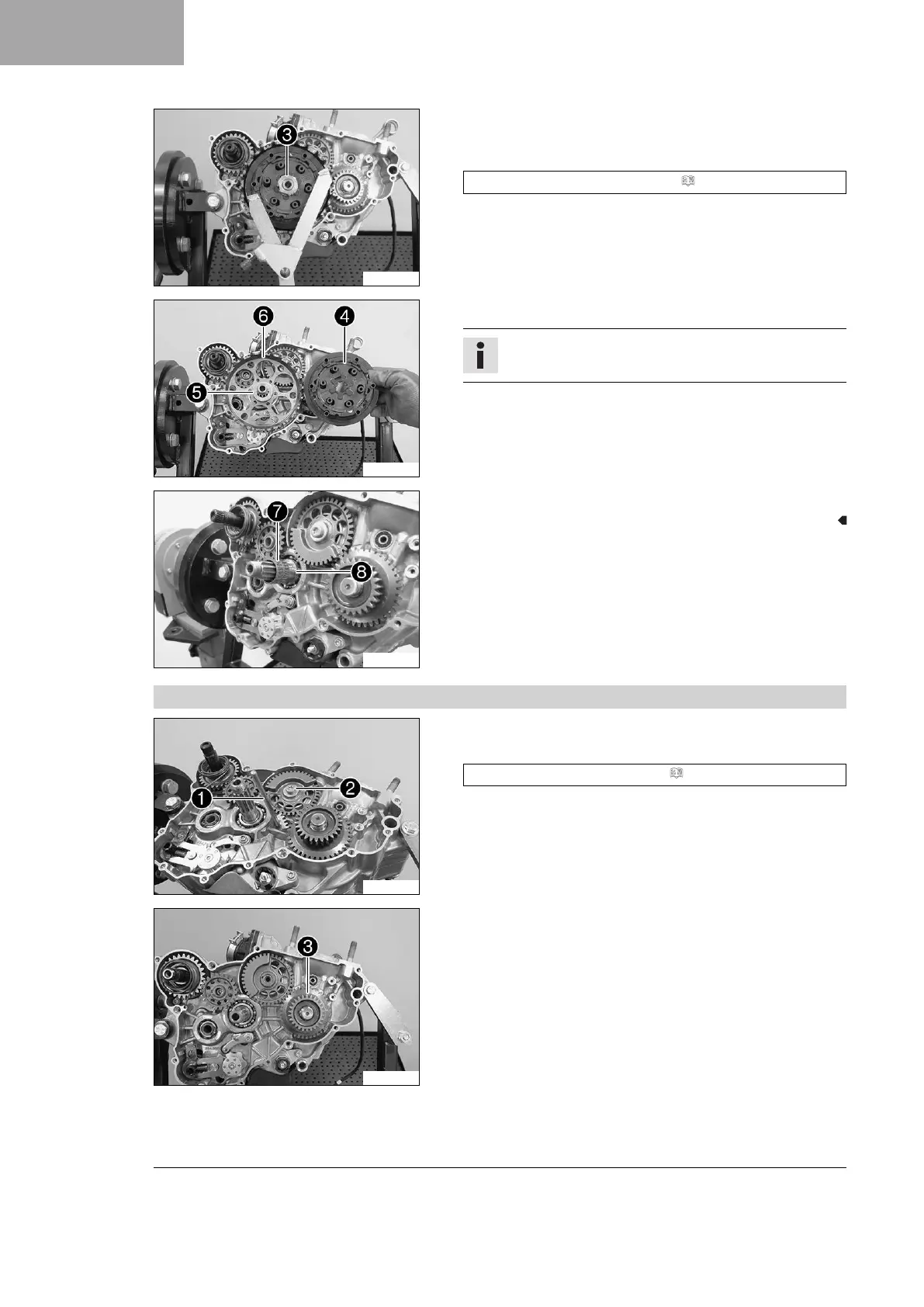

– Bend up the lock washer.
– Hold the inner clutch hub with the special tool. Loosen
nut
3
.
Holding wrench (51129003000) ( p. 364)
– Remove the nut with the lock washer.
D04456-10
–
Take off inner clutch hub
4
and washer
5
.
Info
The washer usually sticks to the inner clutch hub.
–
Take off clutch basket
6
.
D04458-10
–
Take off needle bearing
7
and collar bushing
8
.
18.4.16 Removing the balancer shaft
D04459-10
– Position the special tool.
–
Hold the balancer shaft in place using the special tool
1
.
Gear segment (56012004000) ( p. 366)
–
Remove screw
2
with the washer.
D04461-10
–
Remove primary gear
3
.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
