KTM 300 EXC TPI 2019 Repair Manual

ENGINE 18
217

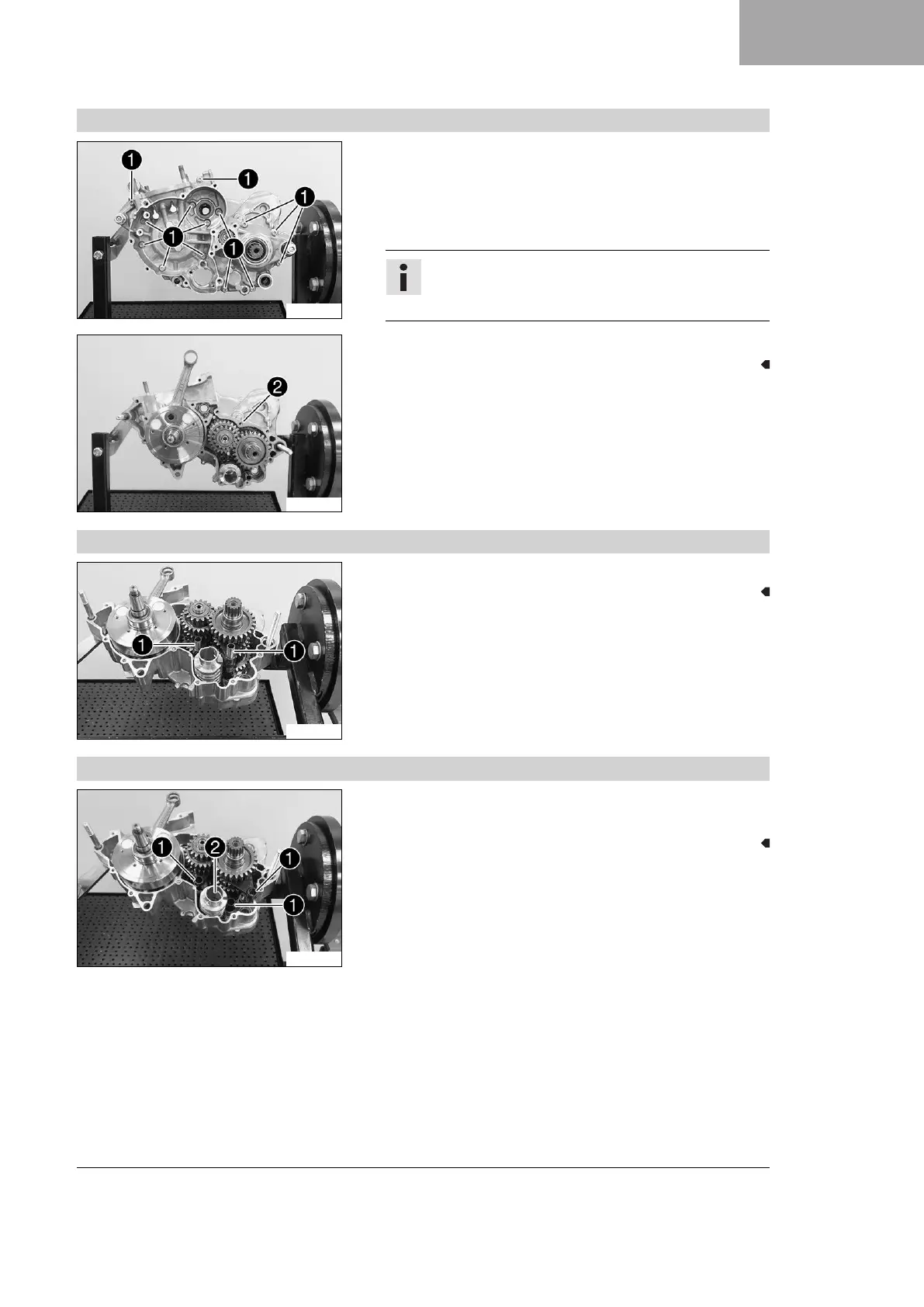

18.4.25 Removing the left engine case section
D04488-10
–
Remove screws
1
.
– Tilt the left section of the engine case upward and remove the
fitting of the engine fixing arm.
– Loosen the left section of the engine case by striking it lightly
with a plastic hammer and remove it.
Info
Do not pry it apart with screwdrivers, since the sealing
areas are easily damaged.
D04489-10
–
Remove engine case gasket
2
.
18.4.26 Removing the shift rails
D04491-10
–
Remove shift rails
1
.
18.4.27 Removing the shift drum
D04492-10
–
Tilt shift forks
1
to the side.
–
Remove shift drum
2
.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
