KTM 300 EXC TPI 2019 Repair Manual

ENGINE 18
271

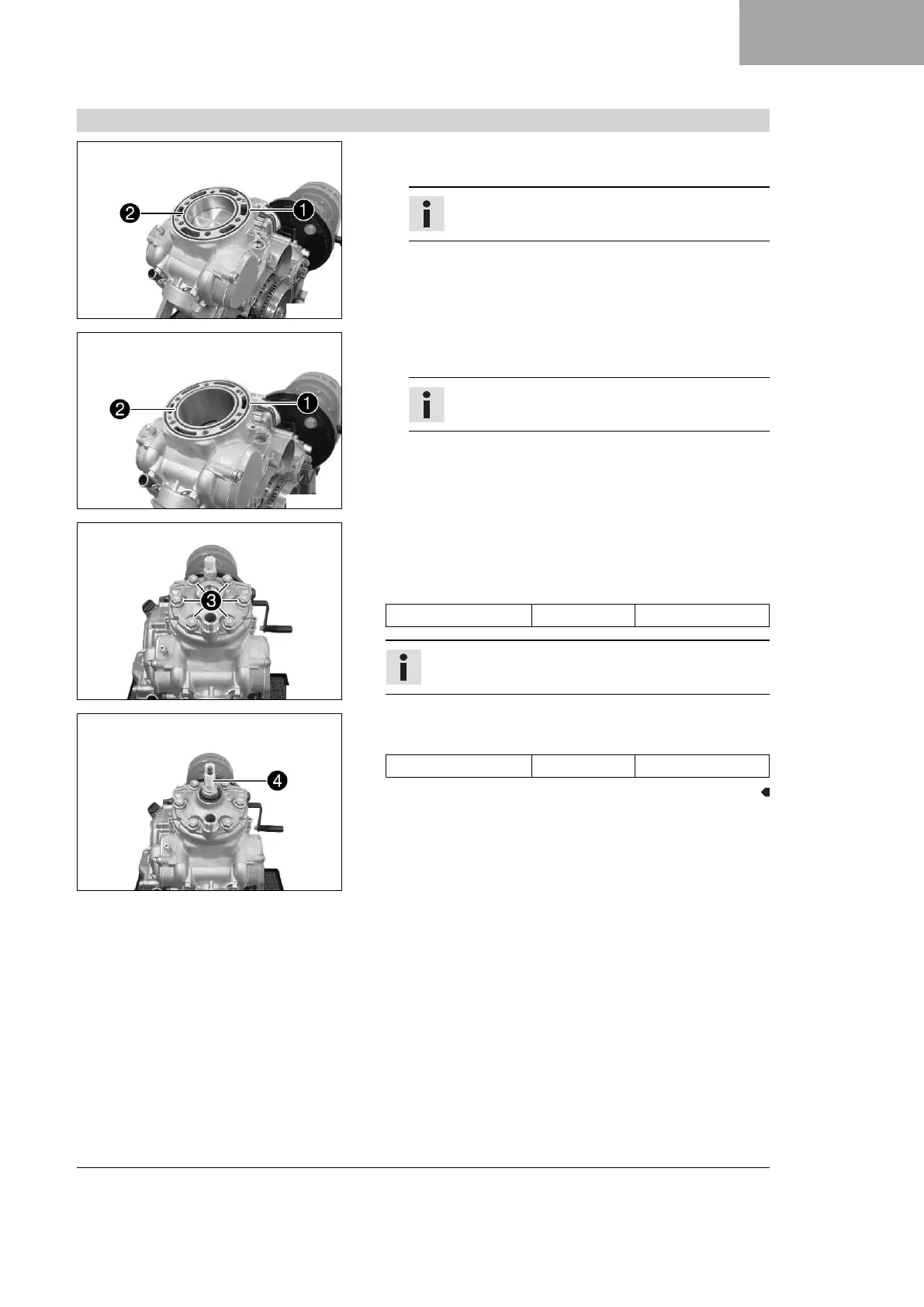

18.6.25 Installing the cylinder head
D04408-11
(All 250 models)
–
Mount O-rings
1
and
2
.
Info
Ensure that the pins are seated correctly.
D04409-11
(All 300 models)
–
Mount O-rings
1
and
2
.
Info
Ensure that the pins are seated correctly.
D04407-11
– Put the cylinder head in place.
–
Mount screws
3
with the washers and tighten them in a
crisscross pattern.
Guideline
Screw, cylinder head M8 27 Nm (19.9 lbf ft)
Info
Use new washers.
D04406-11
–
Mount and tighten spark plug
4
.
Guideline
Spark plug M14x1.25 25 Nm (18.4 lbf ft)

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
